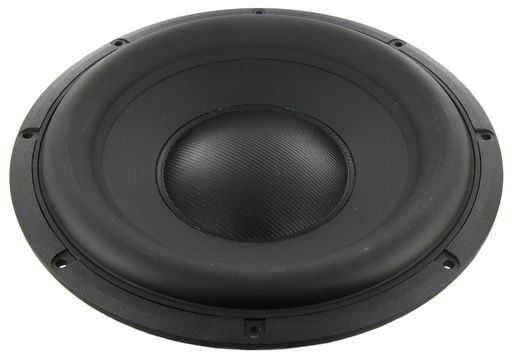

This is a XXLS 10 PASSIVE RADIATOR of brand Scan-speak.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title XXLS 10 PASSIVE RADIATOR
Notes WAS PEERLESS 830481 Identical to a 10” XLS driver but without a magnet and the voice coil has been replaced with a weight. Passive radiators replace the port by adding a mass equivalent to the volume of air in a 10” tube. This eliminates air velocity noises and enables very low tuning F without ridiculously long or narrow port dimensions. Suit small enclosures. You can fine tune this mass by adding weight to the M5 threaded hole enabling excellent control over the final design. Made in Denmark by Scan-Speak.
Description26cm Passive Radiator, Alu Cone, Adjustable Mass
TypePassive
Size10'
Price Typeeach
PowerPassive
Width270mm
ImpedancePassive
Depth70.9mm
RePassive
Qms13.7
Vas95L
Sd352cm²
Cms0.55mm/N
Fs11Hz
Mms400g
ZnPassive
Rms1.97Kg/s
Xmax28mm
ManufacturerScan-speak
QTY1
Page1
Inch10
SeriesDiscovery
PrmsPassive
Impedance (Ohm)Passive
Power (RMS)Passive
Brand.Scan-speak
SKU NoWES_26W/0-00-00_1
