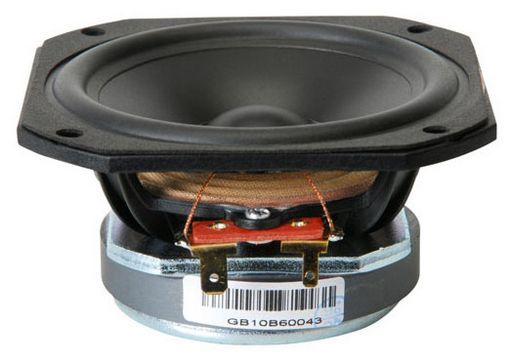

This is a VIFA BY TYMPHANY 3½ FULL-RANGE of brand Vifa.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title VIFA BY TYMPHANY 3½ FULL-RANGE
Notes The TG/TC series offers a high performance full range & midbass solution. Extensive development work with the use of leading-edge technologies. Polymer chassis, NRSC (patented) Glass Fibre Cone & CU-cap pole piece. 110Hz - 15KHz.
TypeFull Range
Size3.5'
Price Typeeach
Power30Wrms
Coil19.4mmØ
Width83mmØ
Impedance8Ω (Re 6.3Ω)
Depth38mm
Mag.300g
Sens.84.56dB
Re6.3Ω
Qms2.73
Qes1.33
Qts0.89
Vas1.24L
Sd36.3cm²
Cms0.6696mm/N
Fs124.86 Hz
Mms2.4g
Zn
Le0.05mH
ManufacturerVifa
Power (RMS)0-50 Watt
QTY1
Freq.110 - 15 K Hz
Inch3.5
Prms30W
Pwr50W (100 W Max)
Impedance (Ohm)8 ohm
Brand.Vifa
SKU NoWES_TC9FD18-08_1
