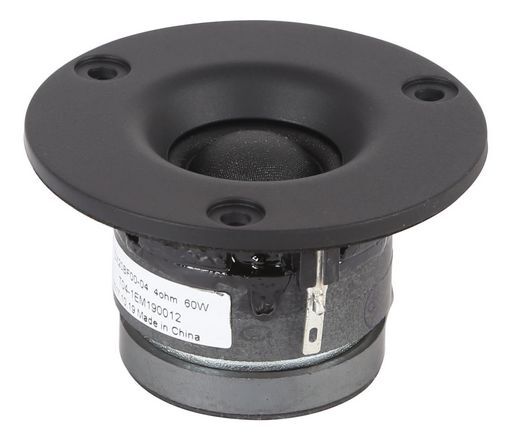

VIFA BY TYMPHANY 3/4 DOME TWEETER SILK
HORN LOADED COUNTER SUNK TIME ALIGNED
SKU code: WES_DX20BF00-04_1
This is a VIFA BY TYMPHANY 3/4 DOME TWEETER SILK of brand Peerless.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | VIFA BY TYMPHANY 3/4 DOME TWEETER SILK |
| Notes | HORN LOADED COUNTER SUNK TIME ALIGNED This small tweeter manages a low resonant frequency by using a damped silk diaphragm and large surround combined with a damped resonant chamber inside the ferrite triple magnet motor. Another advantage of the ferrite motor assembly is increased power handling over similar neodymium designs by increasing heat dissipation for the voice coil. The faceplate on the DX20BF00-04 is semi horn loaded for increased efficiency and improved response up to 30° off axis. |
| Power | 60W |
| Coil | 19.3mm |
| Impedance | 4Ω |
| Depth | 35mm |
| Sens. | 90.14dB |
| Re | 2.81Ω |
| Qms | 2.24 |
| Qes | 2.93 |
| Qts | 1.27 |
| Vas | 0L |
| Cms | 0.1845mm/N |
| Fs | 822.14Hz |
| Mms | 0.2g |
| Zn | 4Ω |
| Le | 0.01mH |
| Diam. | 66mmØ |
| Manufacturer | Peerless |
| Impedance (Ohm) | 4 ohm |
| Power (RMS) | 51-100 Watt |
| Brand. | Peerless |
| SKU No | WES_DX20BF00-04_1 |
