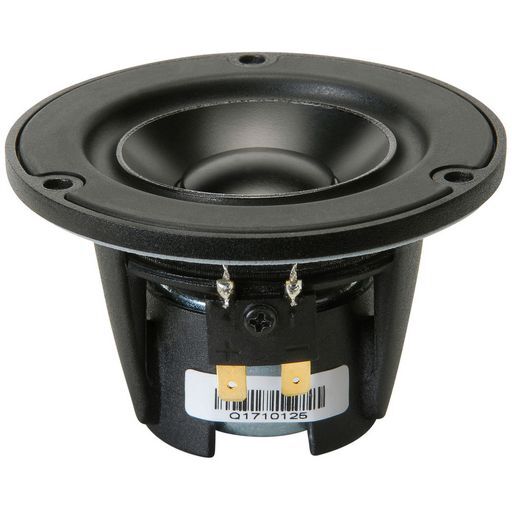

This is a VIFA BY TYMPHANY 2½ NE SERIES SPEAKER of brand Vifa.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title VIFA BY TYMPHANY 2½ NE SERIES SPEAKER
Notes NEODYMIUM-IRON-BORON MAGNET - INVERTED SURROUND Cast aluminium basket design which minimises acoustic reflections inside the driver, through large basket windows and sculpted basket spokes. The basket also is designed to act as a highly coupled heat sink to the Neodymium-Iron-Boron magnet (NdFeB) motor, so as to improve power handling capacity. The cone is aluminium, with a butyl rubber surround designed through finite element analysis for linearity of performance.
TypeFull Range
Size2.5'
Price Typeeach
Power25Wrms
Coil25.7mmØ
Width85mmØ
Impedance4Ω (Re 3.7Ω)
Depth47mm
Mag.240g
Sens.84.81dB
Re3.7Ω
Qms8.45
Qes0.69
Qts0.64
Vas0.73L
Zo4Ω (Re 3.7Ω)
Sd22.3cm²
Cms1.0662mm/N
Fs105Hz
Mms2.2g
Zn
Le0.06mH
ManufacturerVifa
Power (RMS)0-50 Watt
QTY1
Inch2.5
Prms25W
Impedance (Ohm)4 ohm
Brand.Vifa
SKU NoWES_NE85W-04_1
