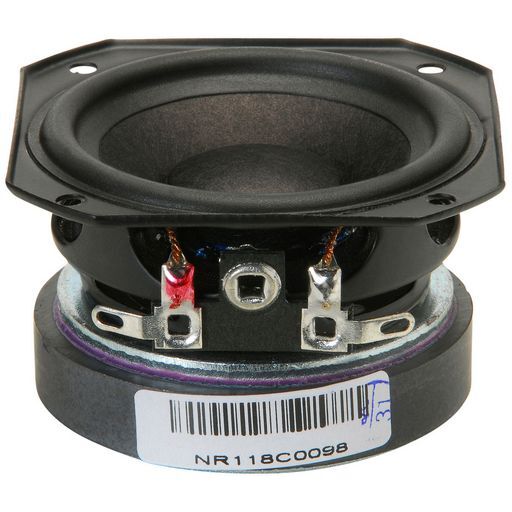

VIFA BY TYMPHANY 2 FULL-RANGE
PAPER CONE STEEL FRAME
SKU code: WES_TC6FD00-04_1
This is a VIFA BY TYMPHANY 2 FULL-RANGE of brand Vifa.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | VIFA BY TYMPHANY 2 FULL-RANGE |
| Notes | PAPER CONE STEEL FRAME Brings classic hi-fi capabilities to compact music and media systems. Patented PentaCut paper cone technology improves musicality and accuracy, and the driver features a cost-effective ceramic ferrite magnet. A copper cap on the pole piece controls system impedance, thereby extending the upper frequency range. Ideally suited for use in flat panel televisions and sound bars, MP3 and cell phone docking stations, hi-fi speaker line arrays, and multimedia PCs. |
| Type | Full Range |
| Size | 2' |
| Price Type | each |
| Power | 15Wrms |
| Coil | 19.4mmØ |
| Width | 55mmØ |
| Impedance | 4Ω (Re 3.5Ω) |
| Depth | 32mm |
| Mag. | 170g |
| Sens. | 84.4dB |
| Re | 3.5Ω |
| Qms | 4.1 |
| Qes | 1.29 |
| Qts | 0.98 |
| Vas | 0.22L |
| Sd | 15.2cm² |
| Cms | 0.677mm/N |
| Fs | 175Hz |
| Mms | 1.22g |
| Zn | 4Ω |
| Le | 0.02mH |
| Manufacturer | Vifa |
| Power (RMS) | 0-50 Watt |
| QTY | 1 |
| Prms | 15W |
| Inch | 2 |
| Impedance (Ohm) | 4 ohm |
| Brand. | Vifa |
| SKU No | WES_TC6FD00-04_1 |
