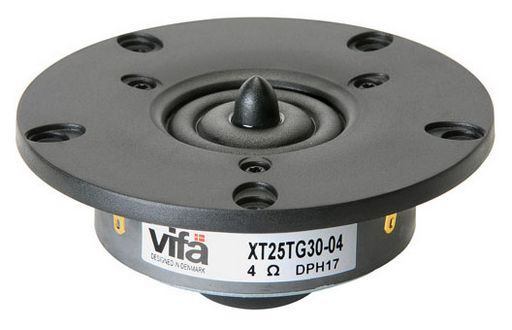

VIFA BY TYMPHANY 1” DUAL CONCENTRIC RING RADIATOR TWEETER
RING RADIATOR TWEETER, EXCEEDS 40KHZ BANDWIDTH !
SKU code: WES_XT25TG30-04_1
This is a VIFA BY TYMPHANY 1” DUAL CONCENTRIC RING RADIATOR TWEETER of brand Vifa.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
TECHNICAL SHEET | |
---|---|
Title | VIFA BY TYMPHANY 1” DUAL CONCENTRIC RING RADIATOR TWEETER |
Notes | RING RADIATOR TWEETER, EXCEEDS 40KHZ BANDWIDTH ! Dual concentric diaphragm, wave guide centre plug for excellent on and off axis response and a very “natural” sound. An extremely smooth response that extends beyond human hearing Dual chamber for low resonance makes this tweeter also suitable for 2-way systems. |
Type | Tweeter |
Size | 1' |
Price Type | each |
Power | 110Wrms |
Coil | 25mmØ |
Width | 104mmØ |
Impedance | 4Ω (Re 3.0Ω) |
Depth | 40.1mm |
Mag. | 240g |
Sens. | 90.84dB |
Re | 3.0Ω |
Qms | 2.50 |
Qes | 0.54 |
Qts | 0.44 |
Vas | 0.04L |
Sd | 8.2cm² |
Cms | 0.3665mm/N |
Fs | 436.13Hz |
Mms | 0.4g |
Zn | 4Ω |
Le | 0.01mH |
Rms | - |
Manufacturer | Vifa |
QTY | 1 |
Inch | 1 |
Power (RMS) | 101-150 Watt |
Prms | 110W |
Impedance (Ohm) | 4 ohm |
Brand. | Vifa |
SKU No | WES_XT25TG30-04_1 |
