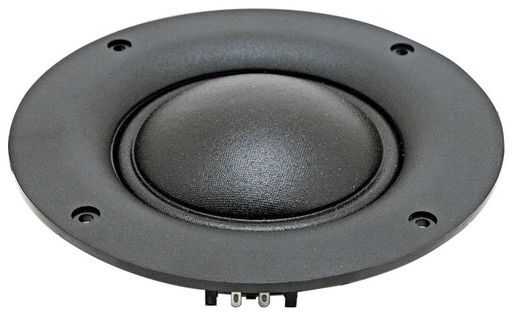

VIFA BY SCAN-SPEAK 3 DOME MIDRANGE
*NOW MANUFACTURED BY SCAN-SPEAK DENMARK
SKU code: WES_D7608920010_2
This is a VIFA BY SCAN-SPEAK 3 DOME MIDRANGE of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
TECHNICAL SHEET | |
---|---|
Title | VIFA BY SCAN-SPEAK 3 DOME MIDRANGE |
Notes | *NOW MANUFACTURED BY SCAN-SPEAK DENMARK Precoated textile dome with low moving mass provides a very smooth and natural sound with excellent on & off axis response. Ferro fluid cooled 3” voice coil with internal magnet for a compact installation. Improved linear performance for easy crossover matching with the tweeter and woofer. Requires ~1.5L back chamber box. |
Description | 76mm Dome Midrange 8 ohm, Ferrite Magnet, With 152mm Faceplate |
Type | Midrange |
Size | 3' |
Price Type | each |
Power | 80Wrms |
Coil | 76mmØ |
Width | 152mm |
Impedance | 8Ω (Re 5.7Ω) |
Depth | 25.6mm |
Mag. | 0.6kg |
Sens. | 92dB |
Re | 5.7Ω |
Qms | 7.75 |
Qes | 2.22 |
Qts | 1.73 |
Vas | 0.36L |
Sd | 55cm² |
Cms | 0.09mm/N |
Fs | 300Hz |
Mms | 3.3g |
Vifa | D75MX-41-08 |
Zn | 8Ω |
Le | 0.13mH |
Rms | 0.8kg/s |
Manufacturer | Scan-speak |
QTY | 1 |
Page | 1 |
Inch | 3 |
Power (RMS) | 51-100 Watt |
Impedance (Ohm) | 8 ohm |
Prms | 80W |
Series | Discovery |
SKU No | WES_D7608/920010_2 |
