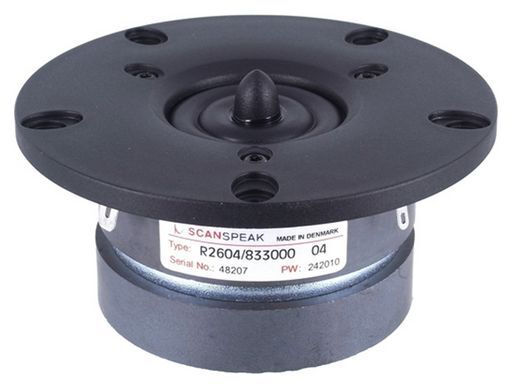

VIFA 1 DUAL CONCENTRIC SUPER TWEETER - REPLACEMENT
VIFA TX25TG30-04 NOW MADE BY SCAN-SPEAK
SKU code: WES_R2604833000_2
This is a VIFA 1 DUAL CONCENTRIC SUPER TWEETER - REPLACEMENT of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | VIFA 1 DUAL CONCENTRIC SUPER TWEETER - REPLACEMENT |
| Notes | VIFA TX25TG30-04 NOW MADE BY SCAN-SPEAK This transducer has a frequency response that is flat to above 20K and distortion that is far lower than usual and also more friendly to the ear. Dual concentric ring radiator with phase plug made in Denmark by Scanspeak Bucking magnet arangement concentrates flux, reducing stray fields.Originaly this tweeter was the Vifa driver DX25TG30-04 which is no longer manufactured. Its direct replacement is now made in Denmark by Scan-Speak R2604-833000 |
| Description | 26mm Ring Radiator 4 ohm, Double Ferrite Magnet, Chamber |
| Type | Tweeter |
| Size | 1' |
| Price Type | each |
| Power | 100Wrms |
| Coil | 26mmØ |
| Width | 104mm |
| Impedance | 4Ω (Re 2.9Ω) |
| Depth | 55.1mm |
| Mag. | 0.8kg |
| Sens. | 92dB |
| Re | 2.9Ω |
| Qms | 2.18 |
| Qes | 0.46 |
| Qts | 0.38 |
| Vas | 0.02L |
| Sd | 5.4cm² |
| Cms | 0.44mm/N |
| Fs | 440Hz |
| Mms | 0.3g |
| Vifa | XT25BG60-04 |
| Zn | 4Ω |
| Le | 0.02mH |
| Rms | 0.38kg/s |
| Manufacturer | Scan-speak |
| QTY | 1 |
| Page | 1 |
| Inch | 1 |
| Prms | 100W |
| Impedance (Ohm) | 4 ohm |
| Power (RMS) | 51-100 Watt |
| Series | Discovery |
| SKU No | WES_R2604/833000_2 |
