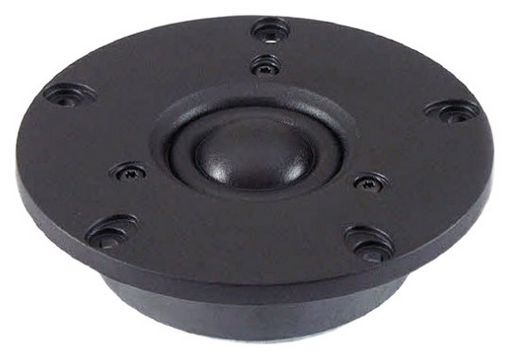

VIFA 1” DOME TWEETER DX25TG SERIES - REPLACEMENT
VIFA DX25TG05-04 REPLACEMENTMANUFACTURED IN DENMARK BY S
SKU code: WES_D2604830000_2
This is a VIFA 1” DOME TWEETER DX25TG SERIES - REPLACEMENT of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | VIFA 1” DOME TWEETER DX25TG SERIES - REPLACEMENT |
| Notes | VIFA DX25TG05-04 REPLACEMENTMANUFACTURED IN DENMARK BY SCAN-SPEAK Extended high frequency response and good off-axis performance Specially treated lightweight silk fabric diaphragm dome Oversized surround structure. Copper-clad aluminium wire. A critically damped rear chamber. 5 hole poly faceplate.Originaly this tweeter was the Vifa driver DX25TG05-04 which is no longer manufactured. Its direct replacement is now made in Denmark by Scan-Speak. |
| Description | 26mm Dome Tweeter 4 ohm, Ferrite Magnet, Wide Surround |
| Type | Tweeter |
| Size | 1' |
| Price Type | each |
| Power | 100Wrms |
| Coil | 26mmØ |
| Width | 104mm |
| Impedance | 4Ω (Re 2.8Ω) |
| Depth | 25.4mm |
| Mag. | 0.5kg |
| Sens. | 92.1dB |
| Re | 2.8Ω |
| Qms | 3.46 |
| Qes | 1.02 |
| Qts | 0.79 |
| Vas | 0.01L |
| Zo | 12.3O |
| Sd | 8.0cm² |
| Cms | 0.15mm/N |
| Fs | 630Hz |
| Mms | 0.42g |
| Zn | 4Ω |
| Le | 0.04mH |
| Rms | 0.48kg/s |
| Manufacturer | Scan-speak |
| QTY | 1 |
| Page | 1 |
| Inch | 1 |
| Prms | 100W |
| Impedance (Ohm) | 4 ohm |
| Power (RMS) | 51-100 Watt |
| Series | Discovery |
| Vifa | DX25TG05-04 |
| SKU No | WES_D2604/830000_2 |
