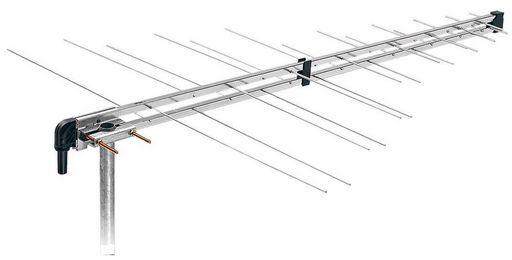

This is a VHF / UHF 11DB LOG PERIODIC - FRACARRO of brand Fracarro.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title VHF / UHF 11DB LOG PERIODIC - FRACARRO
Notes WIDE BANDWIDTH CH5 TO CH69 Fracarro. Italian made Log-periodic antenna.Highly directional with low return losses.VHF/UHF Digital & Analogue reception.Mounts both horizontally and vertically.Bands 3,4 & 5 Channels 6 - 69 AU.VHF 174-230MHz / UHF 470-862MHz.Maximum gain 9dBi / 11dBi.Front-to-back ratio 24dB / 32dB.Return loss -13dB / -13dB.Beamwidth (-3dB) ±34° / ±31°.Wind load @120km 3.9Kg.75 ohm. “F” or Saddle&Screw.U-Bracket Included.1110(L)x860(W)mm 1Kg *Bulky item. Additional delivery charges may apply.
DescriptionVHF / UHF 11dB Log periodic antenna - FRACARRO, F type plug
TypeLog Periodic
Size860x1150mm
Plug'F'
Gain9-11dB
BandVHF-III & UHF
ChannelCH5-12, CH21-69
PackagingBox
Back24-32dB
Elements16
Freq.170-230MHz 470-862MHz
ManufacturerFracarro
SKU NoWES_LP345F_1
