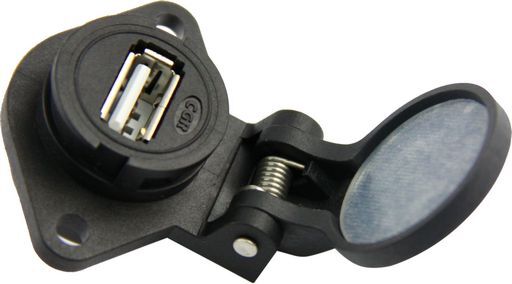

This is a USB-A 2.0 JACK BAYONET & CAP of brand Chogori.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title USB-A 2.0 JACK BAYONET & CAP
Notes SPRING CLOSE DUST CAP Rhombus Panel Mount with IP67 weather sealed dust cap. USB 2.0 to 5 pins solder back.Bayonet.Rhombus Panel Mount
DescriptionUSB rhombus PCB panel mount(lock bayonet)
Contact4
Speed480Mbps
Mechanical Life1500 mating cycles
IPIP68
Operating Temperature-45 ~ +85
Rated Current1.5A
Breakdown Voltage500Vac / 1min
Contact Resistance≤ 30mΩ Max
Insulation Resistance≥ 1000MΩ Min
Chogori Cat Page115
ManufacturerChogori
SKU NoWES_34000000-05_3
