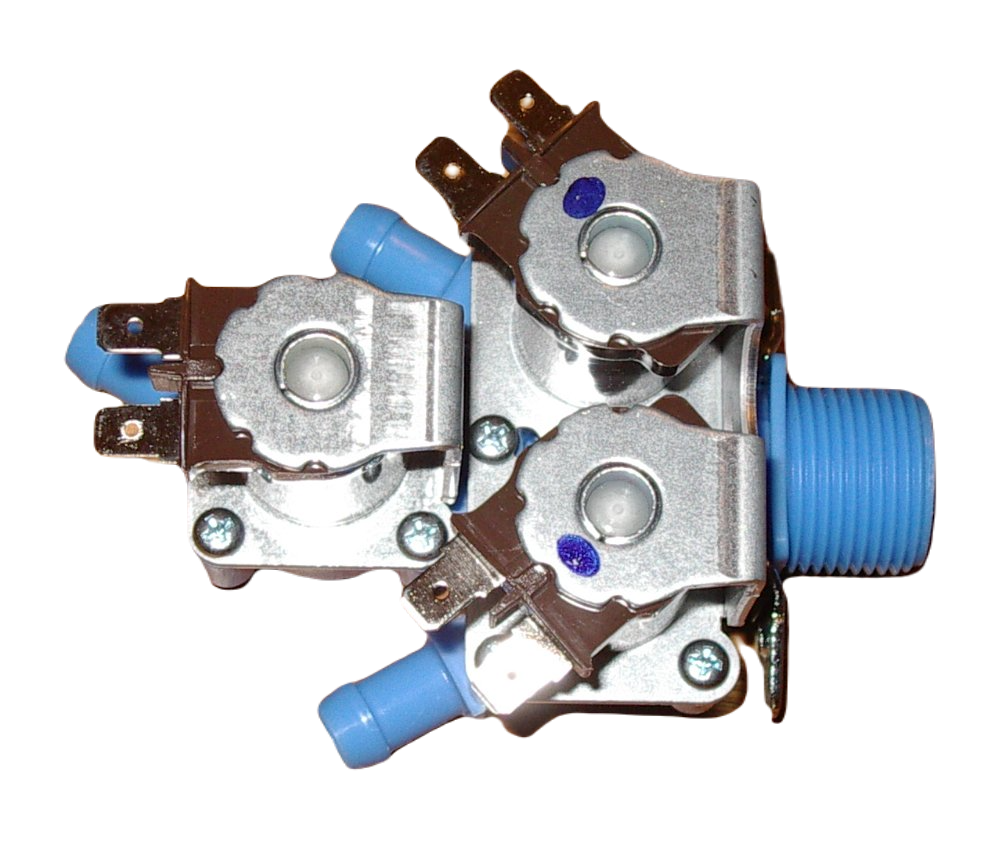

This is a replacement Triple Outlet 10mm Straight Inlet Valve for LG & Asko. It is suitable for replacing spare parts with 5220FR2009F part number for Universal Washing Machines.

SALIN is a leading Australian appliance spare parts distributor specializing in UNIVERSAL applicances. We take pride in our ability to bring hard-to-find UNIVERSAL spare parts into the Australian market. We are proudly Australian-owned and operated. Our sales office is conveniently located in Sydney, NSW. Most of our UNIVERSAL range is genuine.

TECHNICAL SHEET
Part No5220FR2009F
NotesTriple Outlet 10mm Straight Through Single Inlet Water Solenoid Valve.Part No. 5220FR2009F. Similar to LG 5220FR2075B, 5221EN2003A, 5220FR2009S, WV028.Outlets suit 10mm hose. Inlet is standard 3/4' BSP standard tap thread (actual thread diameter 1').This solenoid valve is a suitable replacement for the triple valve used in some LG & Asko front loading washing machines including models WD-1227RD, WD-1290RD, WD-1412RD, WD-1433RD, WD-1435RD, WD-1438RD, WD-1480RD, WD-1481RD, WD-1485RD, WD-14700RD, WD-14030RD, WM90, 10505, W600, 12002.The metal mounting bracket is removable.Flow rate 10litre/min. The #1 outlet has an additional flow restrictor installed. This flow restrictor is different to similar LG valves.240VAC solenoids. 6.4mm spade terminals
TitleTriple Outlet 10mm Straight Inlet Valve for LG & Asko For WD-1227RD Washing Machines
CategoryAppliance Spares > Washer & Dryer > Washing Machines
Replacement ItemTriple Outlet 10mm Straight Inlet Valve for LG & Asko
Replacing Parts✔ 5220FR2075B
✔ 5221EN2003A
✔ 5220FR2009S
✔ WV028
Suitable Models✔  WD-1227RD
✔  WD-1290RD
✔  WD-1412RD
✔  WD-1433RD
✔  WD-1435RD
✔  WD-1438RD
✔  WD-1480RD
✔  WD-1481RD
✔  WD-1485RD
✔  WD-14700RD
✔  WD-14030RD
✔  WM90
✔  10505
✔  W600
✔  12002
SKU NumberFIT_0003931_001_00001



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.
