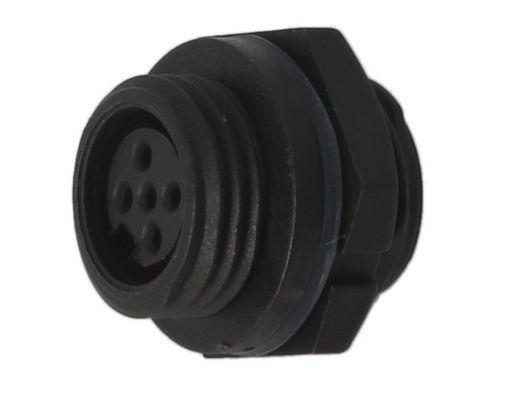

This is a STANDARD SERIES SOCKET SCREW (BACK) of brand Chogori.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title STANDARD SERIES SOCKET SCREW (BACK)
Notes REAR PANEL MOUNT - FEMALE PINS Standard circular connectors. Field installable. Solder pins. Screw type plug secure system. All the products are manufactured with high quality materials to meet the various requirements of different environments, the plastic material used is high performance PA66. The contact surface is gold-plated with 4u”-20u”, its superior mechanical properties ensure long effective application with insert and extract lifetime up to 3000 times. Good performance in waterproof.
DescriptionStandard series 5pin rear panel mount with socket(screw type)
Contact5
Hole16mmØ
Mechanical Life500 mating cycles
Wire Gauge0.519mm²
Panel ThicknessMax. 5.0mm
IPIP68
Operating Temperature-45 ~ +105
Voltage Rating60V
Rated Current5A
Chogori Cat Page49
Cable20AWG
ManufacturerChogori
SKU NoWES_22005615-03_1



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN
SKU WES_22005615-03_1
Brand Chogori
