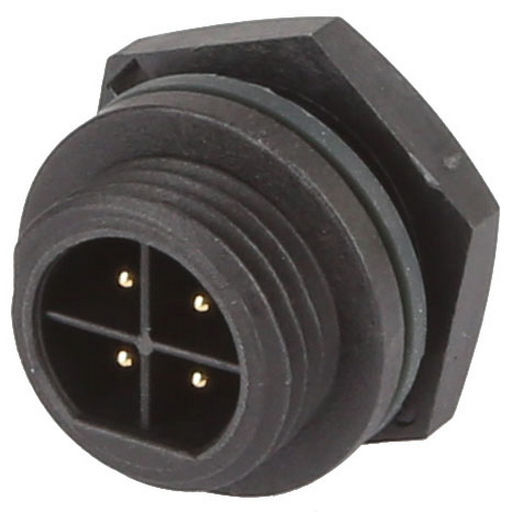

This is a STANDARD SERIES SOCKET (R) SCREW of brand Chogori.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title STANDARD SERIES SOCKET (R) SCREW
Notes REAR PANEL MOUNT - MALE PINS Standard circular connectors. Field installable. Solder pins. Screw type plug secure system. Plastic material used is high performance PA66, male pins used is excellent mechanical properties of phosphor bronze assembly with good electrical conductivity brass. The contact surface is gold-plated with 4u”-20u”, its superior mechanical properties ensure long effective application with insert and extract lifetime up to 3000 times. Good performance in waterproof, 5 sealing structure making its ingress rating reach IP68 standards.
DescriptionStandard series 4pin rear panel mount with pin(screw type)
Contact4
Hole16mmØ
Mechanical Life500 mating cycles
Wire Gauge0.823mm²
Panel ThicknessMax. 5.0mm
IPIP68
Operating Temperature-45 ~ +105
Voltage Rating125V
Rated Current10A
Chogori Cat Page43
Cable18AWG
ManufacturerChogori
SKU NoWES_22004515-03_1
