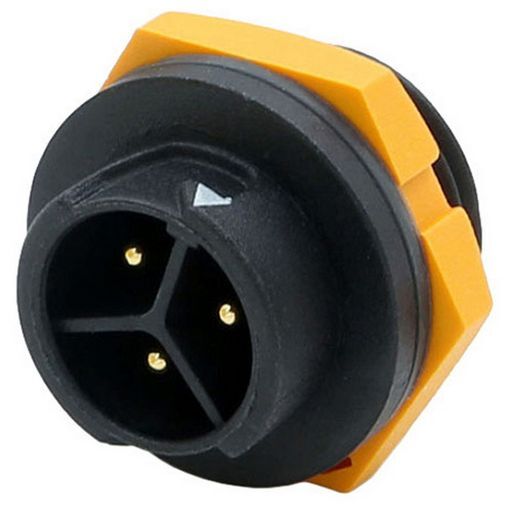

STANDARD SERIES SOCKET (R) PUSH-LOCK
REAR PANEL MOUNT - MALE PINS
SKU code: WES_22003535-03_1
This is a STANDARD SERIES SOCKET (R) PUSH-LOCK of brand Chogori.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | STANDARD SERIES SOCKET (R) PUSH-LOCK |
| Notes | REAR PANEL MOUNT - MALE PINS Standard circular connectors. Field installable. Solder pins. Push Lock type plug secure system. This high quality connector can insert and withdraw simply and quickly. All the products are manufactured with high quality materials to meet the various requirements of different environments, the plastic material used is high performance PA66. Male pins used is excellent mechanical properties of phosphor bronze assembly with good electrical conductivity brass. The contact surface is gold-plated with 4u”-20u”. Good performance in waterproof. |
| Description | Standard series 3pin rear panel mount with pin(push lock) |
| Cable | 18AWG |
| Contact | 3 |
| Hole | 16mmØ |
| Mechanical Life | 500 mating cycles |
| Wire Gauge | 0.823mm² |
| Panel Thickness | Max. 5.0mm |
| IP | IP67 |
| Operating Temperature | -45 ~ +105 |
| Voltage Rating | 300V |
| Rated Current | 10A |
| Chogori Cat Page | 43 |
| Manufacturer | Chogori |
| SKU No | WES_22003535-03_1 |
