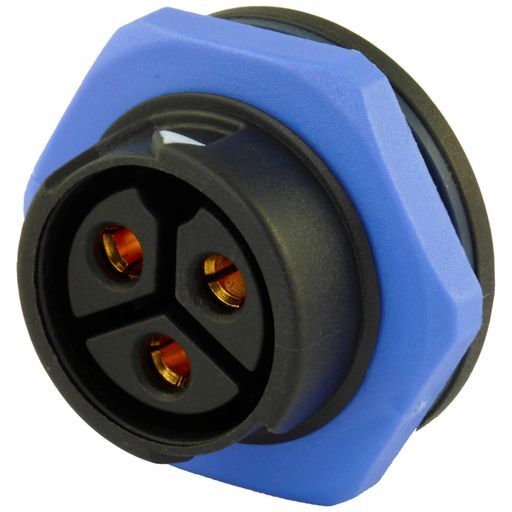

This is a STANDARD SERIES SOCKET PUSH-LOCK of brand Chogori.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title STANDARD SERIES SOCKET PUSH-LOCK
Notes REAR PANEL MOUNT - FEMALE PINS Blue capped indicates Push Lock gender not compatible with yellow. Standard circular connectors. Field installable. Solder pins. Push Lock type plug secure system. Designed to withstand harsh industrial and climatic environment. This high quality connector can insert and withdraw simply and quickly. The plastic material used is high performance PA66. The contact surface is gold-plated with 4u”-20u”, its superior mechanical properties ensure long effective application with insert and extract lifetime up to 3000 times. Good performance in waterproof, 5 sealing structure making its ingress rating reach up to IP67 standards.
DescriptionStandard series 3pin rear panel mount with socket(push lock)
Contact3
Hole16mmØ
Mechanical Life500 mating cycles
Wire Gauge0.823mm²
Panel ThicknessMax. 5.0mm
IPIP67
Operating Temperature-45 ~ +105
Voltage Rating300V
Rated Current10A
Chogori Cat Page49
Cable18AWG
ManufacturerChogori
SKU NoWES_22003635-03_1
