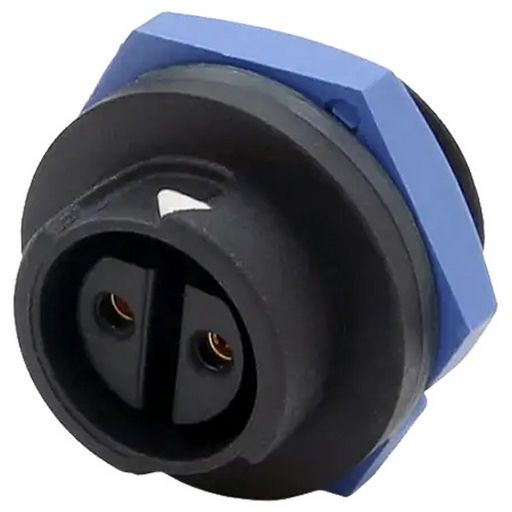

STANDARD SERIES SOCKET PUSH-LOCK
REAR PANEL MOUNT - FEMALE PINS
SKU code: WES_22002635-03_1
This is a STANDARD SERIES SOCKET PUSH-LOCK of brand Chogori.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | STANDARD SERIES SOCKET PUSH-LOCK |
| Notes | REAR PANEL MOUNT - FEMALE PINS Blue capped indicates Push Lock gender not compatible with yellow. Standard circular connectors. Field installable. Solder pins. Push Lock type plug secure system. Designed to withstand harsh industrial and climatic environment. This high quality connector can insert and withdraw simply and quickly. The plastic material used is high performance PA66. The contact surface is gold-plated with 4u”-20u”, its superior mechanical properties ensure long effective application with insert and extract lifetime up to 3000 times. Good performance in waterproof, 5 sealing structure making its ingress rating reach up to IP67 standards. |
| Description | Standard series 2pin rear panel mount with socket(push lock) |
| Contact | 2 |
| Hole | 16mmØ |
| Mechanical Life | 500 mating cycles |
| Wire Gauge | 0.823mm² |
| Panel Thickness | Max. 5.0mm |
| IP | IP67 |
| Operating Temperature | -45 ~ +105 |
| Voltage Rating | 300V |
| Rated Current | 10A |
| Chogori Cat Page | 49 |
| Cable | 18AWG |
| Manufacturer | Chogori |
| SKU No | WES_22002635-03_1 |
