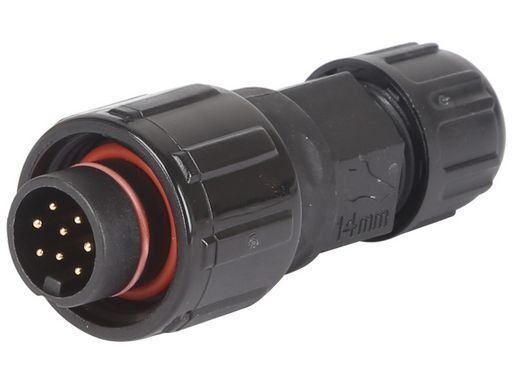

STANDARD SERIES PLUG SCREW
MALE SCREW - MALE PINS
SKU code: WES_22206111-01_1
This is a STANDARD SERIES PLUG SCREW of brand Chogori.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | STANDARD SERIES PLUG SCREW |
| Notes | MALE SCREW - MALE PINS Standard circular connectors. Field installable. Solder pins. Screw type plug secure system. Designed to withstand harsh industrial and climatic environment, its superior quality ensures reliable connection for the higher standards and reliability of industrial machinery, marine electronics, power and signal control components, etc. Plastic material used is high performance PA66,. Male pins used is excellent mechanical properties of phosphor bronze assembly with good electrical conductivity brass. The contact surface is gold-plated with 4u”-20u”, its superior mechanical properties ensure long effective application with insert and extract lifetime up to 3000 times. |
| Description | Standard series 2+6pin male plug with pin field installable(screw type) |
| Size | 48x19mmØ |
| Cable | 20AWG*2C + 22AWG*6C |
| Contact | 2+6 |
| Mechanical Life | 500 mating cycles |
| Cable Range | 3.5-6.8 |
| Wire Gauge | 0.519mm² *2C + 0.34mm² *6C |
| IP | IP68 |
| Operating Temperature | -45 ~ +105 |
| Voltage Rating | 30V |
| Rated Current | 5A+2A |
| Chogori Cat Page | 50 |
| Manufacturer | Chogori |
| SKU No | WES_22206111-01_1 |
