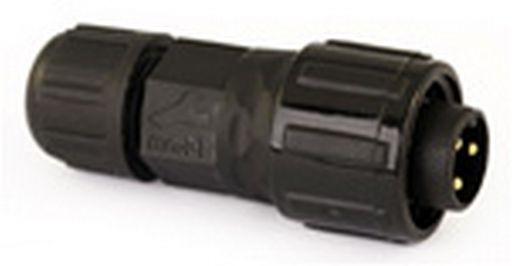

STANDARD SERIES PLUG SCREW
MALE SCREW - MALE PINS
SKU code: WES_22002111-01_1
This is a STANDARD SERIES PLUG SCREW of brand Chogori.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | STANDARD SERIES PLUG SCREW |
| Notes | MALE SCREW - MALE PINS Standard circular connectors. Field installable. Solder pins. Screw type plug secure system. Designed to withstand harsh industrial and climatic environment, its superior quality ensures reliable connection for the higher standards and reliability of industrial machinery, marine electronics, power and signal control components, etc. Plastic material used is high performance PA66,. Male pins used is excellent mechanical properties of phosphor bronze assembly with good electrical conductivity brass. The contact surface is gold-plated with 4u”-20u”, its superior mechanical properties ensure long effective application with insert and extract lifetime up to 3000 times. |
| Description | Standard series 2pin male plug with pin field installable(screw type) |
| Size | 48x19mmØ |
| Cable | 18AWG |
| Contact | 2 |
| Mechanical Life | 500 mating cycles |
| Cable Range | 3.5-6.8 |
| Wire Gauge | 0.823mm² |
| IP | IP68 |
| Operating Temperature | -45 ~ +105 |
| Voltage Rating | 300V |
| Rated Current | 10A |
| Chogori Cat Page | 50 |
| Manufacturer | Chogori |
| SKU No | WES_22002111-01_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | |
| SKU | WES_22002111-01_1 |
| Brand | Chogori |
