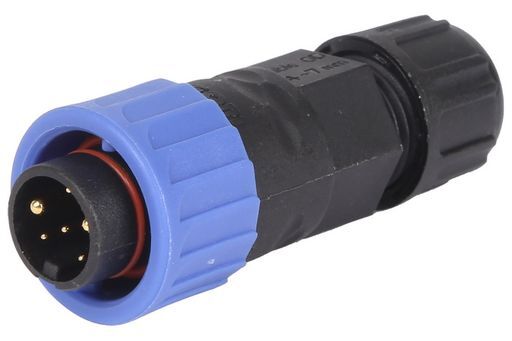

STANDARD SERIES PLUG PUSH-LOCK
MALE PUSH LOCK - MALE PINS
SKU code: WES_22204131-01_1
This is a STANDARD SERIES PLUG PUSH-LOCK of brand Chogori.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | STANDARD SERIES PLUG PUSH-LOCK |
| Notes | MALE PUSH LOCK - MALE PINS Blue capped indicates Push Lock gender not compatible with yellow. Standard circular connectors. Field installable. Solder pins. Push Lock type plug secure system. Designed to withstand harsh industrial and climatic environment. This high quality connector can insert and withdraw simply and quickly. All the products are manufactured with high quality materials to meet the various requirements of different environments, the plastic material used is high performance PA66, male pins used is excellent mechanical properties of phosphor bronze assembly with good electrical conductivity brass. The contact surface is gold-plated with 4u”-20u”. |
| Description | Standard series2+4pin male plug with pin field installable(push lock) |
| Size | 48x19mmØ |
| Cable | 18AWG*2C + 20AWG*4C |
| Contact | 2+4 |
| Mechanical Life | 500 mating cycles |
| Cable Range | 3.5-6.8 |
| Wire Gauge | 0.823mm² *2C + 0.519mm² *4C |
| IP | IP67 |
| Operating Temperature | -45 ~ +105 |
| Voltage Rating | 60V |
| Rated Current | 10A+2A |
| Chogori Cat Page | 50 |
| Manufacturer | Chogori |
| SKU No | WES_22204131-01_1 |
