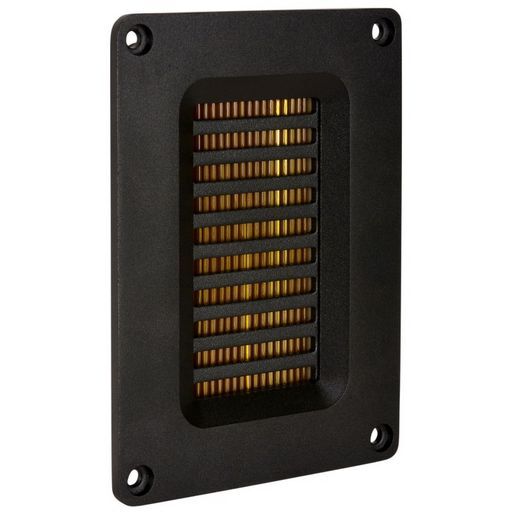

SQUARE AIR MOTION TRANSFORMER TWEETER - DAYTON AUDIO
4 OHM
SKU code: WES_AMT3-4_1
This is a SQUARE AIR MOTION TRANSFORMER TWEETER - DAYTON AUDIO of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SQUARE AIR MOTION TRANSFORMER TWEETER - DAYTON AUDIO |
| Notes | 4 OHM Dayton Audio's AMT3-4 Air Motion Transformer mid-tweeter brings clarity, transient speed, and musical finesse to your design. The large AMT-technology diaphragm and high-strength neo motor offer extremely wide bandwidth and high sensitivity.The Dayton Audio AMT3-4's generous radiating area extends response from lower frequencies into the upper midrange, making the transducer great for use as a wideband mid-tweeter in a 2-way design with larger woofers, or as a midrange in a 3-way design. The robust metal faceplate adds the distinctive feel of quality, while the sealed rear chamber design eliminates the need for a separate enclosure chamber. Dayton Audio AMT (Air Motion Transformer) tweeters use groundbreaking transducer technology from the original Heil Air Motion Transformer to provide ultra-clean, detailed, and dynamic treble output. The pleated ribbon diaphragm of an AMT provides a large acoustic radiating area condensed into a compact chassis, for extremely high output and improved power handling.Robust metal faceplate provides secure, stable mountingPowerful, lightweight neodymium magnet structure for low distortion and high efficiencyWide bandwidth facilitates integration with large midwoofers25 watt RMS power handling |
| Description | AIR MOTION TRANSFORMER TWEETER |
| Type | AMT |
| Power | 25W |
| Coil | AMT |
| Impedance | 4Ω (Re 3.5Ω) |
| Depth | 26.5mm |
| Sens. | 93dB |
| Re | 3.0Ω |
| Qms | 6.26 |
| Qes | N/A |
| Qts | 6.15 |
| Vas | N/A |
| Sd | 32.5cm² |
| Cms | N/A |
| Fs | 1900Hz |
| Mms | N/A |
| Zn | 4Ω |
| Diam. | 130x95mm |
| Manufacturer | Dayton Audio |
| Prms | 25W |
| Impedance (Ohm) | 4 ohm |
| Power (RMS) | 0-50 Watt |
| Series | AMT |
| QTY | 1 |
| Hole | 113x68mm |
| Inch | 2 |
| Size | 2' |
| Price Type | each |
| SKU No | WES_AMT3-4_1 |
