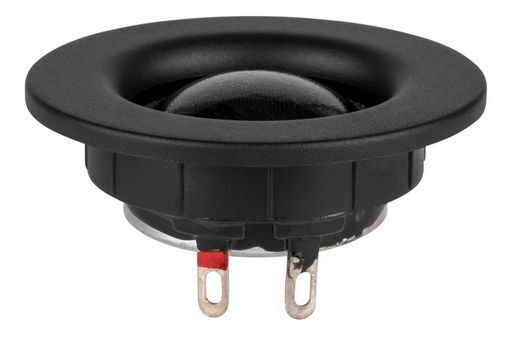

¾ SOFT DOME NEODYMIUM TWEETER
¾ SOFT DOME NEODYMIUM TWEETER
SKU code: WES_ND20FA-6_1
This is a ¾ SOFT DOME NEODYMIUM TWEETER of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | ¾ SOFT DOME NEODYMIUM TWEETER |
| Notes | This Dayton Audio versatile soft dome tweeter is a huge step above the average budget tweeter. Conceived with line array thoughts in mind, it achieves the inter-driver spacing needed to minimise comb filtering out to nearly 20 kHz. In addition, it has the sensitivity, smoothness, and power handling to individually do a two-way with most small woofers or use it in an A-pillar in your car as a great inexpensive component tweeter.Compact neodymium motors have low stray fieldFerrofluid enhances power handling and helps damp resonanceFront-mount pressfit designCenter-to-center spacing as low as 1-3/4Extremely flat and extended response |
| Description | ¾' Neodymium Dome Tweeter 6 Ohm |
| Type | Dome Tweeter |
| Size | 0.75' |
| Power | 15W |
| Coil | 19mmØ |
| Impedance | 6Ω (Re 5.2Ω) |
| Depth | 15mm |
| Sens. | 90dB |
| Re | 5.2Ω |
| Qms | 1.5 |
| Qes | 2.88 |
| Qts | 0.99 |
| Vas | - |
| Sd | 2.8cm² |
| Cms | - |
| Fs | 2005Hz |
| Mms | - |
| Zn | 6Ω |
| Le | 0.05mH |
| Diam. | 45mmØ |
| Manufacturer | Dayton Audio |
| Impedance (Ohm) | 6 ohm |
| Power (RMS) | 0-50 Watt |
| Inch | 0.75 |
| Series | ND Series |
| Hole | 33mmØ |
| QTY | 1 |
| Prms | 15W |
| Price Type | each |
| SKU No | WES_ND20FA-6_1 |
