Silver Mica CAPACITOR | Value: 330 pF | Tolerance: %5 | Pitch: 7mm | 500V | For Hobby | For PCB | For TV

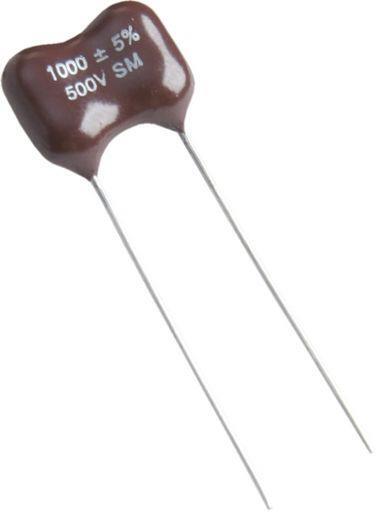

SILVER MICA CAPACITORS 500V
SKU code: WES_SMC330_1
This is a SILVER MICA CAPACITORS 500V of brand Electro-Harmonix.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SILVER MICA CAPACITORS 500V |
| Notes | Absolute best sounding capacitors for audio, tone and filter circuits, etc. Also ideal for Oscillators and TX ccts. Sourced from the USA, for HOT valves. MIL-C-5 RS153. Indian Ruby Muscovite & Epoxy Resin Dipped Superior heat, moisture, shock resistance. High stability -55 to 135°C Tolerance ±5% Long life reliability. Audiophile sound. www.simicelectronics.comSIMIC Dipped Mica Capacitors are designed to meet the exacting physical, electrical and environmental requirements of the MIL-C-5 and RS-153 specifications.It is well known that natural mica is extremely stable against heat. SIMIC Capacitors are manufactured from selected Indian ruby muscovite mica having optimum electrical characteristics. Silvered mica is made by printing electrodes on mica film with special silver paste. The silvered films are stacked to the desired value interleaved with metal foils for contact. Then the terminals are clamped on to the element. (The terminals are copper clad steel wires finished with a solider coating for good solderability). The clamped unit is either dipped under vacuum in epoxy resin and coated with epoxy powder conformally or dipped in phenolic resin and vacuum impregnated with liquid epoxy resin. The envelope thus formed gives high moisture and heat resistance to the unit. This design ensures high reliability and stability.Careful selection of raw materials and constant monitoring of all equipment and processes provides an overall uniform level of quality consistent with the stringent requirements of today's most sophisticated electronic equipment. |
| Value | 330pf |
| Volts | 500V |
| Pitch | 7mm |
| Temp. | -55°C +150°C |
| Tolerance | 5% |
| Manufacturer | Electro-Harmonix |
| SKU No | WES_SMC330_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | |
| SKU | WES_SMC330_1 |
| Brand | Electro-Harmonix |
