SCR - TIN FOIL FILM AUDIOPHILE Capacitor | Value: 3.9 µF | Size: 40mm x 25mmø | 100Vac | For Hobby | For PCB | For TV
AUDIOPHILE PERFORMANCE CAPACITOR
SKU code: WES_TN3.9_2

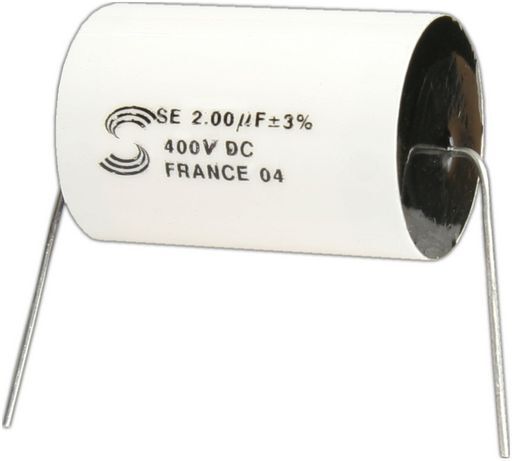

This is a SCR - TIN FOIL FILM AUDIOPHILE of brand Universal.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCR - TIN FOIL FILM AUDIOPHILE |
| Notes | AUDIOPHILE PERFORMANCE CAPACITOR Made in France, these capacitors are renowned for their high electrical performance and stability, insignificant dielectric absorption and no piezoelectric effect. Very low series inductance or resistance and very high current capabilities. Ideal for speaker crossovers, audio coupling and high precision applications in Audio.Description polypropylene with tin foils Housing axial leads, wrapped with PVC insulating tape, sealed at the ends with resin. Terminals tinned copper wires. Tolerance ±3% Test voltage between terminals 1.5 Un (10 seconds) Operating temperature -25° to +85°C Loss factor at 10 kHz 15.10-4 |
| Value | 3.9μf |
| Volts | 100Vac |
| Type | SE |
| Voltage | 100V |
| Size | 40x25mmØ |
| Temp. | -25° +85°C |
| Series | SE |
| Tolerance | 3% |
| SKU No | WES_TN3.9_2 |
