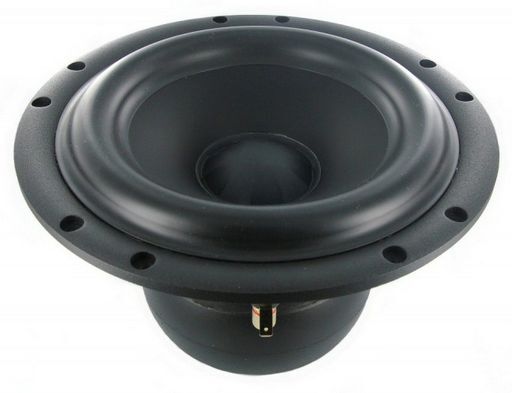

SCAN-SPEAK 9” SUB-WOOFER ALUMINIUM CONE REVELATOR
ALUMINIUM CONE BLACK
SKU code: WES_23W4557T02_1
This is a SCAN-SPEAK 9” SUB-WOOFER ALUMINIUM CONE REVELATOR of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 9” SUB-WOOFER ALUMINIUM CONE REVELATOR |
| Notes | ALUMINIUM CONE BLACK The Revelator woofers and sub-woofers features very rigid cones in paper or aluminium that operates as a piston over a wide frequency range, in combination with Scan-Speaks linear suspension and the patented Symmetrical Drive (SD-1) it results in very low distortion and a smooth and well behaved frequency response as well as perfect transient reproduction.Patented Symmetrical Drive Motor DesignLong Throw SurroundFerrite Magnet System w. Rubber BootBlack Anodized Rigid Alu ConeDie cast Alu Chassis vented below spiderGold Binding Post Terminals |
| Description | 23cm Subwoofer 4 ohm, Black Alu Cone, Ferrite Magnet |
| Fs | 21Hz |
| Impedance | 4Ω (Re 4.5Ω) |
| Power | 225Wrms |
| Sens. | 82.0dB |
| Qes | 0.52 |
| Qms | 4.80 |
| Qts | 0.47 |
| Cms | 0.60mm/N |
| Coil | 50mmØ |
| Depth | 135mm |
| Impedance (Ohm) | 4 ohm |
| Inch | 9 |
| Le | 0.45mH |
| Mag. | 4.6kg |
| Mms | 101g |
| Power (RMS) | 200+ Watt |
| Re | 4.5Ω |
| Rms | 2.71kg/s |
| Sd | 232cm² |
| Series | Revelator |
| Size | 9' |
| Type | Subwoofer |
| Vas | 45.0L |
| Width | 255mm |
| Zn | 4Ω |
| Manufacturer | Scan-speak |
| Price Type | each |
| SKU No | WES_23W/4557T02_1 |
