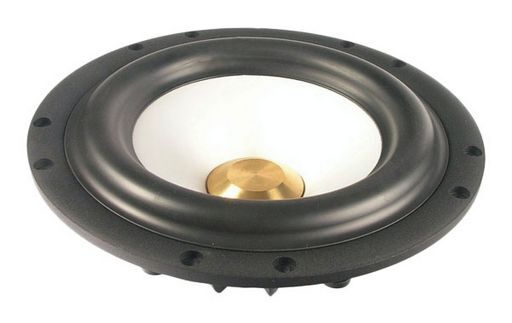

SCAN-SPEAK 9” PASSIVE RADIATOR
SCAN-SPEAK 9” PASSIVE RADIATOR
SKU code: WES_23W00000_1
This is a SCAN-SPEAK 9” PASSIVE RADIATOR of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
TECHNICAL SHEET | |
---|---|
Title | SCAN-SPEAK 9” PASSIVE RADIATOR |
Notes | With this technology you can actually achieve subsonics! A very high end passive-radiator; Flag-ship Scan-Speak Revelator series with a very rigid aluminium cone and low-loss suspension. Massive roll rubber surround for maximum linear exertion SPL w/ very low compression. Optimised for the Revelator series but also quite suitable for bass extending many driver/box combinations. *Mass (Mms) can be increased. Bargain! |
Description | 23cm Passive Radiator, Alu Cone, Adjustable Mass, Silver |
Qms | 11.5 |
Vas | 43.3L |
Sd | 232cm² |
Fs | 10.5Hz |
Mms | 400g(min*) |
Cone | Silver Anodized Aluminium |
Manufacturer | Scan-speak |
Sens. | - |
Qes | - |
Qts | - |
Le | - |
Cms | 0.57mm/N |
Rms | 2.29kg/s |
Width | 255mm |
Depth | 73mm |
Inch | 9 |
Size | 9' |
Price Type | each |
Mag. | nill |
Type | Passive |
Power | Passive |
Coil | Passive |
Impedance | Passive |
Re | Passive |
Zn | Passive |
Impedance (Ohm) | Passive |
Power (RMS) | Passive |
Series | Revelator |
SKU No | WES_23W/00000_1 |
