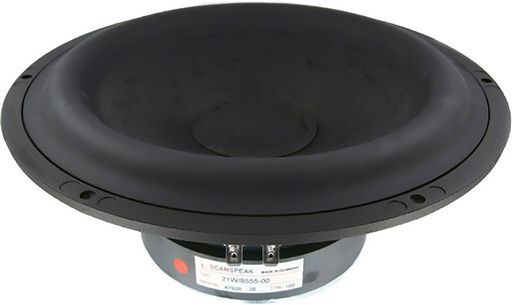

SCAN-SPEAK 8 WOOFER - CLASSIC SERIES
SCAN-SPEAK 8 WOOFER - CLASSIC SERIES
SKU code: WES_21W8555-00_1
This is a SCAN-SPEAK 8 WOOFER - CLASSIC SERIES of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
TECHNICAL SHEET | |
---|---|
Title | SCAN-SPEAK 8 WOOFER - CLASSIC SERIES |
Notes | Hard paper cone is very rigid and perfect for bass reproduction. A special coating provides sufficient damping to ensure minimum resonances in the bass area. Low loss, linear suspension reduces compression and gives maximum dynamic capability and detailing. The “SD-1” magnet system and the voice coil with copper wire wound on a Kapton foil gives high SPL and low clipping distortion. 21W/8555-00 is magnesium frame 21W/8555-10 is aluminium frame |
Description | 22cm Midwoofer 8 ohm, Carbonfiber Paper Cone, Magnesium frame |
Type | Woofer |
Size | 8' |
Price Type | each |
Power | 100Wrms |
Coil | 42mmØ |
Width | 222mm |
Impedance | 8Ω (Re 5.5Ω) |
Depth | 83mm |
Mag. | 2.2kg |
Sens. | 87dB |
Re | 5.5Ω |
Qms | 4.5 |
Qes | 0.33 |
Qts | 0.31 |
Vas | 134L |
Sd | 220cm² |
Cms | 1.98mm/N |
Fs | 20Hz |
Mms | 32g |
Zn | 8Ω |
Le | 0.40mH |
Rms | 0.89kg/s |
Manufacturer | Scan-speak |
QTY | 1 |
Prms | 100W |
Freq. | 20Hz |
Power (RMS) | 51-100 Watt |
Inch | 8 |
Impedance (Ohm) | 8 ohm |
Series | Classic |
Brand. | Scan-speak |
SKU No | WES_21W/8555-00_1 |
