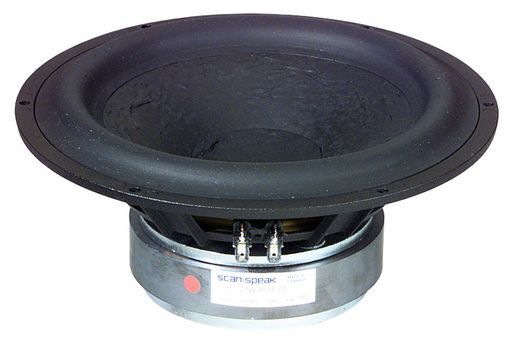

SCAN-SPEAK 8 WOOFER CLASSIC
CLASSIC SERIES
SKU code: WES_21W8555-10_1
This is a SCAN-SPEAK 8 WOOFER CLASSIC of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 8 WOOFER CLASSIC |
| Notes | CLASSIC SERIES The 21W/8555-10 is a mechanically upgraded version of 21W/8555-00, its major change is the aluminium chassis, that maintains shape under high SPL. The patented Symmetric Drive (SD-1) concept with copper in the magnet system and carbon fibre paper cone and low loss linear suspension continues to be the key features that make the 21W/8555-10 one of the best 8” woofers available.Patented Symmetrical Drive Motor Design SD-1Low-Loss linear suspensionLow Damping SBR Rubber SurroundDie Cast Alu. ChassisAir Dried Paper/Carbon Fibre Cone42mm Voice Coil |
| Description | 22cm Midwoofer 8 ohm, Carbonfiber Paper Cone, Aluminium frame |
| Type | Woofer |
| Size | 8' |
| Price Type | each |
| Power | 100Wrms |
| Coil | 42mmØ |
| Width | 222mm |
| Impedance | 8Ω (Re 5.5Ω) |
| Depth | 82mm |
| Mag. | 2.2kg |
| Sens. | 87.5dB |
| Re | 5.5Ω |
| Qms | 4.80 |
| Qes | 0.27 |
| Qts | 0.26 |
| Vas | 136L |
| Sd | 220cm² |
| Cms | - |
| Fs | 19Hz |
| Mms | 36g |
| Zn | 8Ω |
| Le | 0.60mH |
| Rms | 0.90kg/s |
| Manufacturer | Scan-speak |
| QTY | 1 |
| Page | 1 |
| Prms | 100W |
| Freq. | 19Hz |
| Power (RMS) | 51-100 Watt |
| Inch | 8 |
| Impedance (Ohm) | 8 ohm |
| Series | Classic |
| Brand. | Scan-speak |
| SKU No | WES_21W/8555-10_1 |
