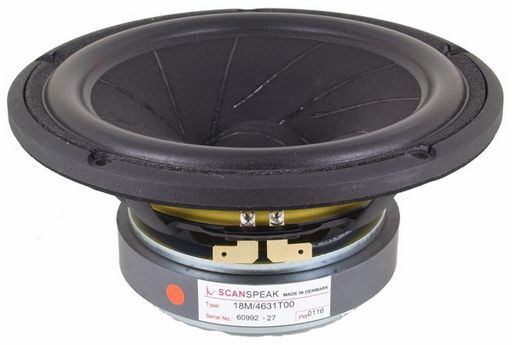

SCAN-SPEAK 7 MIDRANGE REVELATOR
REVELATOR SERIES
SKU code: WES_18M4631T00_1
This is a SCAN-SPEAK 7 MIDRANGE REVELATOR of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 7 MIDRANGE REVELATOR |
| Notes | REVELATOR SERIES The Revelator midranges are well known for their sliced paper cone technology. The slices are filled with damping glue which dramatically reduces break-up modes in the diaphragm. In combination with Scan-Speaks low-loss linear suspension and the patented Symmetrical Drive (SD-1) it represents a breakthrough in midrange clarity and overall smooth frequency response characteristics.Patented Symmetrical Drive motor designLow-loss Linear SuspensionCoated Foam SurroundSliced Cone (Control Cone Breakups)High Sensitivity 92dB @ 2,83VRigid Titanium Voice Coil Former |
| Description | 18cm Midrange 4 ohm, Sliced Paper Cone, Large Ferrite Magnet |
| Fs | 65Hz |
| Impedance | 4Ω (Re 3.9Ω) |
| Power | 120Wrms |
| Sens. | 92.0dB |
| Qes | 0.67 |
| Qms | 5.65 |
| Qts | 0.60 |
| Vas | 14.0L |
| Cms | 0.42mm/N |
| Coil | 38mmØ |
| Depth | 77mm |
| Impedance (Ohm) | 4 ohm |
| Inch | 7 |
| Le | 0.16mH |
| Mag. | 1.7kg |
| Mms | 14.3g |
| Power (RMS) | 101-150 Watt |
| Re | 3.9Ω |
| Rms | 1.03kg/s |
| Sd | 154cm² |
| Series | Revelator |
| Size | 4' |
| Type | Midrange |
| Width | 182mm |
| Zn | 4Ω |
| Manufacturer | Scan-speak |
| Price Type | each |
| SKU No | WES_18M/4631T00_1 |
