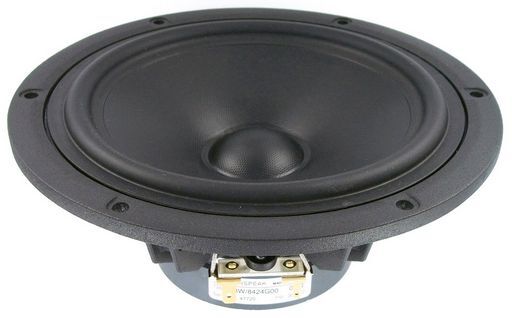

This is a SCAN-SPEAK 7 MID-WOOFER DISCOVERY of brand Scan-speak.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title SCAN-SPEAK 7 MID-WOOFER DISCOVERY
Notes NRSC FIBREGLASS CONE COATED 18cm Midwoofer 8ohm, Coated Fiberglass Cone, Ferrite Magnet. The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements - plus a wealth of technical features and finesses - it gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point.High Output 89.5dB @ 2.83VCoated NRSC Fibreglass ConeDie Cast Aluminium Chassis, Vented Below SpiderExcellent Midrange PerformanceLow Damping SBR Rubber Surround
Description18cm Midwoofer 8 ohm, Coated Fiberglass Cone, Ferrite Magnet
Impedance8Ω (Re 6.4Ω)
Fs54Hz
Power50Wrms
Sens.89.4dB
Qes0.51
Qms4.04
Qts0.45
Vas20.3L
Re6.4Ω
Rms0.95kg/s
Sd137cm²
SeriesDiscovery
Size7'
TypeMid-Woofer
Width180mm
Zn
Depth72mm
Impedance (Ohm)8 ohm
Inch7
Le0.69mH
Mag.1.1kg
Mms11.3g
Power (RMS)0-50 Watt
ManufacturerScan-speak
Cms0.77mm/N
Coil25mmØ
Price Typeeach
SKU NoWES_18W/8424G00_1
