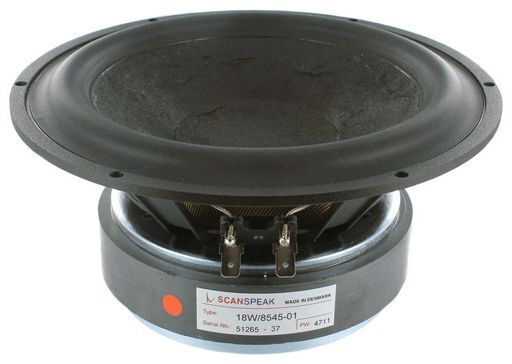

SCAN-SPEAK 7” MID-WOOFER CLASSIC
PAPER WITH CARBON FIBRE CONE
SKU code: WES_18W8545-01_1
This is a SCAN-SPEAK 7” MID-WOOFER CLASSIC of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
TECHNICAL SHEET | |
---|---|
Title | SCAN-SPEAK 7” MID-WOOFER CLASSIC |
Notes | PAPER WITH CARBON FIBRE CONE This unit is an improved version of the highly praised 18W/8545-00 midwoofer, where a new aluminium chassis, an updated cone and a new spider as well as a few other details are introduced, these updates improves mechanical stability and sound performance. High-quality magnet system design with patented Symmetric Drive (SD-1) continues to be key feature.Patented Symmetrical Drive Motor Design42mm Voice Coil w. Alu foilLow Damping SBR Rubber SurroundCoated Air Dried Paper/Carbon Fibre ConeLow-Loss linear suspensionAluminium Chassis |
Description | 18cm Midwoofer 8 ohm, Carbonfiber Paper Cone, Alu VC Former |
Cms | 2.3mm/N |
Coil | 42mmØ |
Impedance | 8Ω (Re 6.2Ω) |
Power | 100Wrms |
Fs | 25Hz |
Qes | 0.22 |
Qms | 1.55 |
Qts | 0.20 |
Re | 6.2Ω |
Rms | 1.8kg/s |
Sd | 145cm² |
Sens. | 88.0dB |
Size | 6.5' |
Type | Mid-Woofer |
Vas | 68.6L |
Width | 177mm |
Zn | 8Ω |
Depth | 75mm |
Impedance (Ohm) | 8 ohm |
Inch | 6.5 |
Le | 0.39mH |
Mag. | 2.3kg |
Mms | 18g |
Power (RMS) | 51-100 Watt |
Manufacturer | Scan-speak |
Page | 1 |
Series | Classic |
Price Type | each |
SKU No | WES_18W/8545-01_1 |
