SCAN-SPEAK 5½ MID-WOOFER REVELATOR
SCAN-SPEAK 5½ MID-WOOFER REVELATOR
SKU code: WES_15W8530K01_1

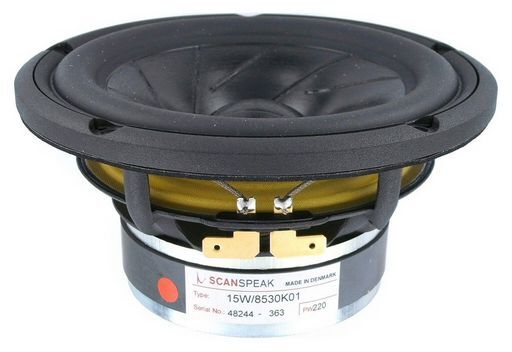

This is a SCAN-SPEAK 5½ MID-WOOFER REVELATOR of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 5½ MID-WOOFER REVELATOR |
| Notes | This premium reference driver features a non-resonant, paper pulp, spiral ribbed, doped, cone and textile cap structure. Dynamic linear suspension, “SD-1” magnet system, tapered pole vent, a beautiful ”Grasshopper” aerodynamic cast chassis with maximised air flow and resonance terminating mounting system. Achieves minimum resonances,low compression, high linearity, fast, dynamic, high sound pressure. |
| Description | 15cm Midwoofer 8 ohm, Coated Sliced Paper Cone, Small Ferrite Magnet |
| Type | Mid-Woofer |
| Size | 5' |
| Price Type | each |
| Power | 60Wrms |
| Coil | 38mmØ |
| Width | 148mm |
| Impedance | 8Ω (Re 5.8Ω) |
| Depth | 70mm |
| Mag. | 1.2kg |
| Sens. | 84.5dB |
| Re | 5.8Ω |
| Qms | 5.23 |
| Qes | 0.44 |
| Qts | 0.41 |
| Vas | 24.0L |
| Sd | 95cm² |
| Cms | 1.9mm/N |
| Fs | 32Hz |
| Mms | 13g |
| Zn | 8Ω |
| Le | 0.35mH |
| Rms | 0.5kg/s |
| Manufacturer | Scan-speak |
| QTY | 1 |
| Page | 1 |
| Inch | 5.5 |
| Power (RMS) | 51-100 Watt |
| Prms | 60W |
| Impedance (Ohm) | 8 ohm |
| Series | Revelator |
| Brand. | Scan-speak |
| SKU No | WES_15W/8530K01_1 |
