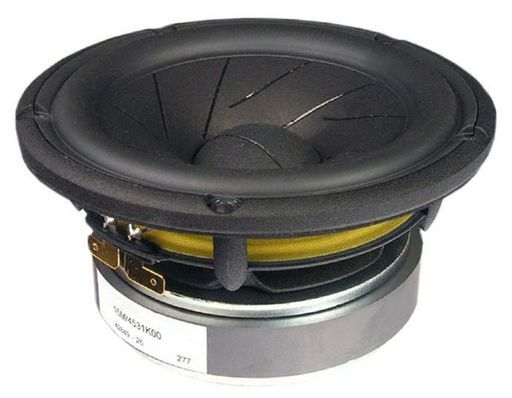

SCAN-SPEAK 5 MID RANGE REVELATOR
SCAN-SPEAK 5 MID RANGE REVELATOR
SKU code: WES_15M4531K00_1
This is a SCAN-SPEAK 5 MID RANGE REVELATOR of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 5 MID RANGE REVELATOR |
| Notes | This premium reference driver features a non-resonant, paper pulp,spiral ribbed, doped, cone and textile cap structure. Dynamic linear suspension, “SD-1” magnet system, tapered pole vent, a beautiful ”Grasshopper” aerodynamic cast chassis with maximised air flow and resonance terminating mounting system. Achieves minimum resonances, low compression, high linearity, fast, dynamic, high sound pressure. |
| Description | 15cm Midrange 4 ohm, Sliced Paper Cone, Large Ferrite Magnet |
| Type | Mid-Woofer |
| Size | 5' |
| Price Type | each |
| Power | 50Wrms |
| Coil | 38mmØ |
| Width | 148mm |
| Impedance | 4Ω (Re 3.5Ω) |
| Depth | 71.2mm |
| Mag. | 1.7kg |
| Sens. | 90dB |
| Re | 3.5Ω |
| Qms | 4.80 |
| Qes | 0.24 |
| Qts | 0.23 |
| Vas | 23.8L |
| Sd | 95cm² |
| Cms | 1.88mm/N |
| Fs | 35Hz |
| Mms | 11g |
| Zn | 4Ω |
| Le | 0.17mH |
| Rms | 0.5kg/s |
| Manufacturer | Scan-speak |
| Power (RMS) | 0-50 Watt |
| QTY | 1 |
| Page | 1 |
| Impedance (Ohm) | 4 ohm |
| Inch | 5.5 |
| Prms | 50W |
| Series | Revelator |
| Brand. | Scan-speak |
| SKU No | WES_15M/4531K00_1 |
