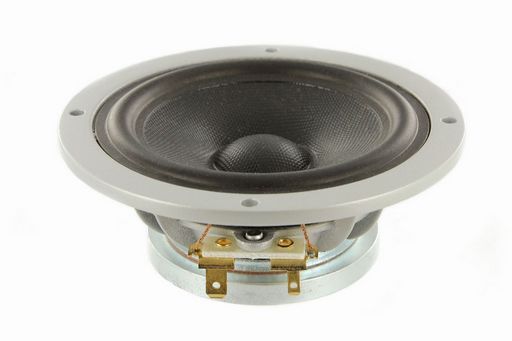

SCAN-SPEAK 4” MIDRANGE AUTOMOTIVE
AUTOMOTIVE SERIES
SKU code: WES_10M4614G06_1
This is a SCAN-SPEAK 4” MIDRANGE AUTOMOTIVE of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 4” MIDRANGE AUTOMOTIVE |
| Notes | AUTOMOTIVE SERIES 10cm Midrange 4ohm, Neo Magnet, Coated Fiberglass Cone. Scan-Speak SILVER SERIES are specially selected units from Scan-Speak’s well-known home audio speakers. Which have been optimized for automotive use. This series enables audiophiles to experience in their vehicle the - TRUE TO LIVE - that they enjoy from their high-end home audio system.Scan-SpeakVery wide Frequency RangeCoated NRSC Fibreglass Cone (patent)Compact Size, Neo magnet, Aluminium ChassisHigh Sensitivity 90dB / 2,83VSBR Rubber SurroundCopper Cap on Pole Piece |
| Description | 10cm Midrange 4 ohm, Neo Magnet, Coated Fiberglass Cone |
| Impedance | 4Ω (Re 3.8Ω) |
| Power | 15Wrms |
| Fs | 90Hz |
| Vas | 2.0L |
| Qes | 0.32 |
| Qms | 3.20 |
| Qts | 0.29 |
| Cms | 1.10mm/N |
| Coil | 20mmØ |
| Depth | 40mm |
| Impedance (Ohm) | 4 ohm |
| Inch | 1 |
| Le | 0.10mH |
| Mag. | 0.3kg |
| Manufacturer | Scan-speak |
| Mms | 2.80g |
| Power (RMS) | 0-50 Watt |
| Re | 3.8Ω |
| Rms | 0.49kg/s |
| Sd | 36cm² |
| Sens. | 90.0dB |
| Series | Automotive |
| Size | 1' |
| Type | Midrange |
| Width | 98mm |
| Zn | 4Ω |
| Price Type | each |
| SKU No | WES_10M/4614G06_1 |
