SCAN-SPEAK 4 MID RANGE REVELATOR
SCAN-SPEAK 4 MID RANGE REVELATOR
SKU code: WES_12M4631G00_1

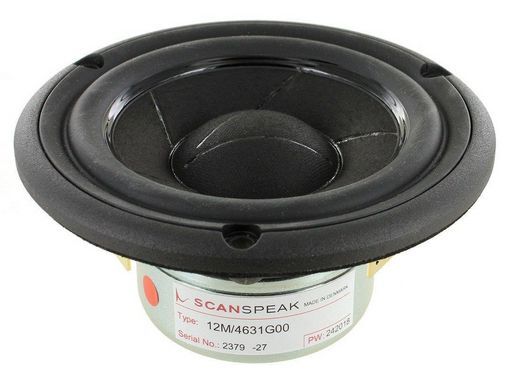

This is a SCAN-SPEAK 4 MID RANGE REVELATOR of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 4 MID RANGE REVELATOR |
| Notes | Heavy-duty cast alloy frame and pole ventilated magnet system. Sandwich paper cone doped, textile dust cap, all coated. Rubber surround, large spider, maximising coil linearity.Open back design for optimising resonances, requires chamber. Absolute premium construction achieving phenomenal mid acoustics. Crossover point is recommended at 300Hz for maximum power handling. |
| Description | 12cm Midrange 4 ohm, Sliced Paper Cone, Neo Magnet |
| Type | Mid-Woofer |
| Size | 5' |
| Price Type | each |
| Power | 40Wrms |
| Coil | 38mmØ |
| Width | 115.5mm |
| Impedance | 4Ω (Re 3.2Ω) |
| Depth | 42.7mm |
| Mag. | 0.6kg |
| Sens. | 89dB |
| Re | 3.2Ω |
| Qms | 5.57 |
| Qes | 0.35 |
| Qts | 0.33 |
| Vas | 2.3L |
| Sd | 49cm² |
| Cms | 0.69mm/N |
| Fs | 75Hz |
| Mms | 6.5g |
| Zn | 4Ω |
| Le | 0.22mH |
| Rms | 0.55kg/s |
| Manufacturer | Scan-speak |
| Power (RMS) | 0-50 Watt |
| QTY | 1 |
| Page | 1 |
| Impedance (Ohm) | 4 ohm |
| Inch | 4.5 |
| Prms | 40W |
| Series | Revelator |
| Brand. | Scan-speak |
| SKU No | WES_12M/4631G00_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | |
| SKU | WES_12M4631G00_1 |
| Brand | Scan-speak |
