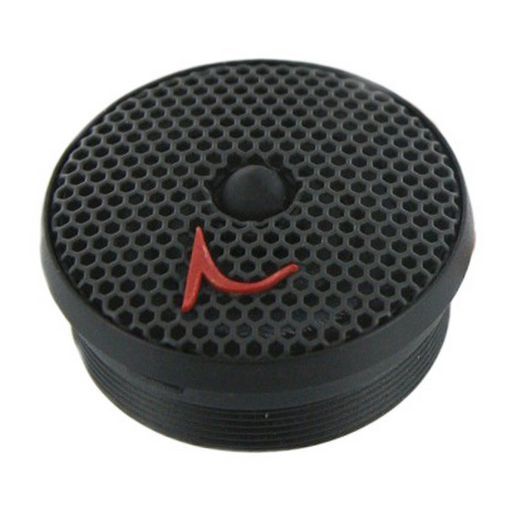

SCAN-SPEAK 3/4” RING RADIATOR AUTOMOTIVE
AUTOMOTIVE SERIES
SKU code: WES_R1904613001_1
This is a SCAN-SPEAK 3/4” RING RADIATOR AUTOMOTIVE of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 3/4” RING RADIATOR AUTOMOTIVE |
| Notes | AUTOMOTIVE SERIES 19mm Ring Radiator 4ohm, Neo Magnet, Wedge House & Nut, Grill from the Discovery range. Highly compact 42mm diameter with 8mm protrusion allows discrete flush mounting in dashboards / pillars / doors etc. Supplied with wedge shaped housing for surface mount applications. The frequency response is optimised for in car use. Rated at 40 watts rms.Scan-Speak3/4 Ring Dome tweeter under a grilleOptimized for Car use and installationCompact mounting dimensionsFlange and Nut for door panel mountingWedge House for dashboard mounting |
| Description | 19mm Ring Radiator 4 ohm, Neo Magnet, Wedge House & Nut, Grill |
| Impedance | 4Ω (Re 4.3Ω) |
| Fs | 1000Hz |
| Power | 40Wrms |
| Sens. | 87.0dB |
| Qes | 2.02 |
| Qms | 8.03 |
| Qts | 1.61 |
| Vas | 0.002L |
| Cms | 0.11mm/N |
| Coil | 19mmØ |
| Depth | 12mm |
| Impedance (Ohm) | 4 ohm |
| Inch | 1 |
| Le | 0.02mH |
| Mag. | 0.05kg |
| Manufacturer | Scan-speak |
| Mms | 0.23g |
| Power (RMS) | 0-50 Watt |
| Re | 3.3Ω |
| Rms | 0.18kg/s |
| Sd | 3.8cm² |
| Series | Automotive |
| Size | 1' |
| Type | Tweeter |
| Width | 42mm |
| Zn | 4Ω |
| Price Type | each |
| Brand. | ScanSpeak |
| SKU No | WES_R1904/613001_1 |
