SCAN-SPEAK 2 FULL RANGE NEO DISCOVERY
DISCOVERY
SKU code: WES_5F8422T01_1
This is a SCAN-SPEAK 2 FULL RANGE NEO DISCOVERY of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 2 FULL RANGE NEO DISCOVERY |

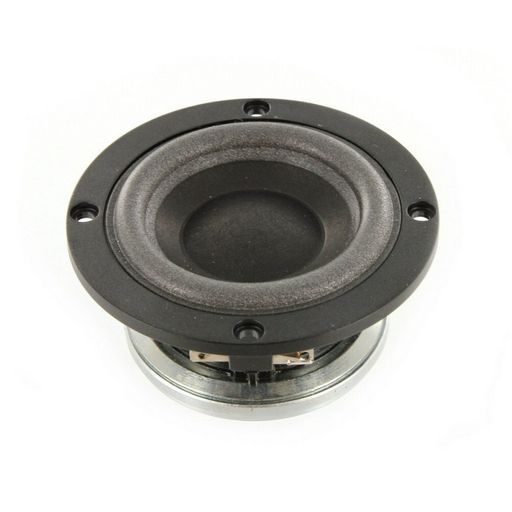

| Notes | DISCOVERY 6.7cm Fullrange 8ohm, Large Ring Neo Magnet. The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements - plus a wealth of technical features and finesses - gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point.Powerful Neo Ring Motor, Symmetric Drive1 Voice Coil, Ti Former, European Soft PartsHard Paper Cone, Foam Surround, Long ExcursionLarge Pole Piece Vent, Low DistortionWide Frequency RangeExtended Copper Cap on Pole Piece We recommend a small sealed enclosure for this, about 1 to 2 liters. Your frequency range should about 100Hz to 20kHz. |
| Description | 6.7cm Fullrange 8 ohm, Large Ring Neo Magnet |
| Impedance | 8Ω (Re 6.1Ω) |
| Fs | 93Hz |
| Power | 10Wrms |
| Sens. | 80.0dB |
| Qes | 0.69 |
| Qms | 5.17 |
| Qts | 0.61 |
| Cms | 1.58mm/N |
| Coil | 26mmØ |
| Depth | 33mm |
| Impedance (Ohm) | 8 ohm |
| Inch | 1.7 |
| Le | 0.07mH |
| Mag. | 0.127kg |
| Mms | 1.86g |
| Power (RMS) | 0-50 Watt |
| Re | 6.1Ω |
| Rms | 0.21kg/s |
| Sd | 15cm² |
| Series | Discovery |
| Size | 1.7' |
| Type | Full Range |
| Vas | 0.50L |
| Width | 67mm |
| Zn | 8Ω |
| Manufacturer | Scan-speak |
| Price Type | each |
| SKU No | WES_5F/8422T01_1 |
