SCAN-SPEAK 13 WOOFER REVELATOR
HIGH SPL HIGH POWER LOW FREQUENCY
SKU code: WES_32W4878T01_1

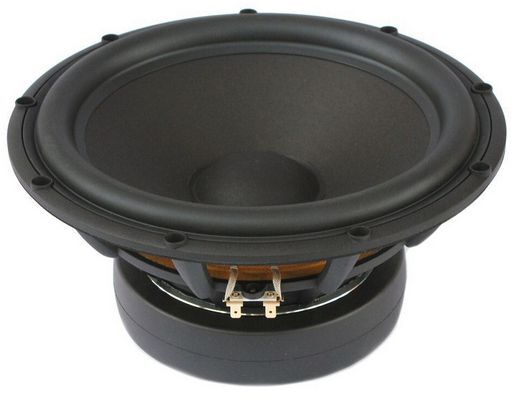

This is a SCAN-SPEAK 13 WOOFER REVELATOR of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 13 WOOFER REVELATOR |
| Notes | HIGH SPL HIGH POWER LOW FREQUENCY The 32W/4878T01 is a powerful woofer designed by Scan-speak. Its large 3” voice coil and low resonance frequency is perfect to reproduce low to mid frequencies at with high efficiency. It features a brand new type of paper-sandwich cone with a special foam filling technology (patented) that gives the cone very high stiffness and relative low weight. The motor system has heavy-duty copper sleeves for optimizing eddy currents effect and minimized self-induction.Paper sandwich cone with Patented foam fillingPatented Symmetrical Drive motorSpider with balanced woven in tinsel leadsLin. excursion (±7.0 mm) with high efficiency3” Voice coil, Titanium former and paper reinforcedStiff and strong die cast aluminium chassis |
| Description | 32cm Woofer 4 ohm, Sandwich Paper Cone, Ferrite Magnet |
| Impedance | 4Ω (Re 3.1Ω) |
| Fs | 23Hz |
| Power | 200Wrms |
| Sens. | 92.0dB |
| Qes | 0.30 |
| Qms | 6.00 |
| Qts | 0.28 |
| Vas | 170L |
| Cms | 0.43mm/N |
| Coil | 75mmØ |
| Depth | 150mm |
| Impedance (Ohm) | 4 ohm |
| Inch | 13 |
| Le | 0.30mH |
| Mag. | 7.5kg |
| Mms | 112g |
| Power (RMS) | 151-200 Watt |
| Re | 3.1Ω |
| Rms | 2.7kg/s |
| Sd | 526cm² |
| Series | Revelator |
| Size | 13' |
| Type | Woofer |
| Width | 320mm |
| Zn | 4Ω |
| Manufacturer | Scan-speak |
| Price Type | each |
| SKU No | WES_32W/4878T01_1 |
