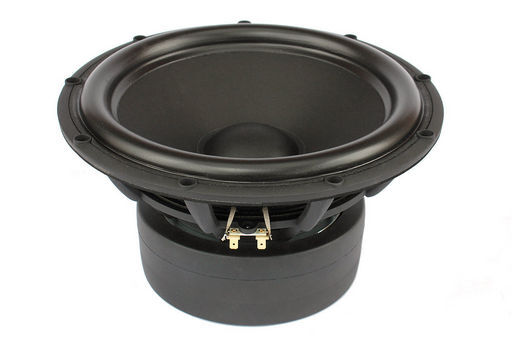

This is a SCAN-SPEAK 13 WOOFER of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
TECHNICAL SHEET | |
---|---|
Title | SCAN-SPEAK 13 WOOFER |
Notes | The 32W/4878T11 woofer is optimized for high sensitivity applications. It offers an impressive 95 dB sensitivity at 2.83V/1m. It features a large 3” motor system with patented Symmetrical Drive, double ferrite magnets and a sandwich paper cone surrounded by a coated foam suspension.95 dB Sensitivity @ 2.83V/1mCoated foam SurroundPowerful motor with dual ferrite magnetsPaper sandwich conePatented Symmetrical Drive motor3” Voice coil, Titanium former and paper reinforced |
Impedance | 4Ω (Re 3.1Ω) |
Power | 350Wrms |
Fs | 24Hz |
Qes | 0.22 |
Qms | 4.25 |
Qts | 0.21 |
Vas | 185L |
Re | 3.1Ω |
Rms | 3.3kg/s |
Sd | 526cm² |
Sens. | 95.0dB |
Series | Revelator |
Size | 13' |
Type | Woofer |
Width | 320mm |
Zn | 4Ω |
Depth | 160mm |
Impedance (Ohm) | 4 ohm |
Inch | 13 |
Le | 0.36mH |
Mag. | 9.8kg |
Mms | 93g |
Power (RMS) | 200+ |
Cms | 0.47mm/N |
Coil | 75mmØ |
Manufacturer | Scan-speak |
SKU No | WES_32W/4878T11_1 |
