SCAN-SPEAK 11 SUB-WOOFER REVELATOR
HIGH SPL HIGH POWER LOW FREQUENCY
SKU code: WES_28W4878T00_1

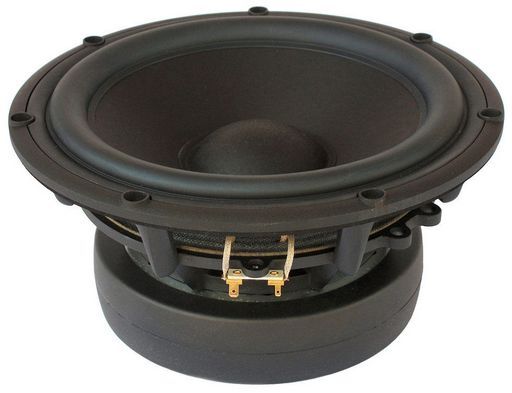

This is a SCAN-SPEAK 11 SUB-WOOFER REVELATOR of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 11 SUB-WOOFER REVELATOR |
| Notes | HIGH SPL HIGH POWER LOW FREQUENCY The 28W/4878T00 is a very powerful 28cm sub-woofer, with its large 3” voice coil, extreme linear excursion and low resonance frequency is it perfect to reproduce the deepest frequencies. It features a paper-sandwich cone with very high stiffness and relative low weight. The motor system has heavy duty copper sleeves for optimizing eddy currents and minimizing self-induction.Paper sandwich coneSpider with balanced tinsel leads3” Voice coil, Titanium former and paper reinforcedPatented Symmetrical Drive motorExtreme linear excursion (+/-14 mm)Stiff and strong die cast aluminium chassis |
| Description | 28 cm Subwoofer, 4 ohm, Sandwich Paper Cone, Ferrite Magnet |
| Impedance | 4Ω (Re 3.8Ω) |
| Fs | 18Hz |
| Power | 200Wrms |
| Sens. | 88.2dB |
| Qes | 0.32 |
| Qms | 5.6 |
| Qts | 0.30 |
| Vas | 127L |
| Cms | 0.68mm/N |
| Coil | 75mmØ |
| Depth | 140mm |
| Impedance (Ohm) | 4 ohm |
| Inch | 11 |
| Le | 0.50mH |
| Mag. | 7.5kg |
| Mms | 115g |
| Power (RMS) | 151-200 Watt |
| Re | 3.8Ω |
| Rms | 2.3kg/s |
| Sd | 363cm² |
| Series | Revelator |
| Size | 11' |
| Type | Subwoofer |
| Width | 280mm |
| Zn | 4Ω |
| Manufacturer | Scan-speak |
| Price Type | each |
| SKU No | WES_28W/4878T00_1 |
