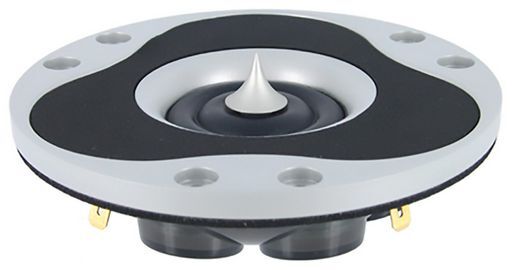

SCAN-SPEAK 1 RING TWEETER ILLUMINATOR
ILLUMINATOR RING RADIATOR - NEODYMIUM MAGNETS
SKU code: WES_R3004662001_1
This is a SCAN-SPEAK 1 RING TWEETER ILLUMINATOR of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 1 RING TWEETER ILLUMINATOR |
| Notes | ILLUMINATOR RING RADIATOR - NEODYMIUM MAGNETS The large-roll surround and textile dome ring radiator provides a flat frequency response to above 30KHz with outstanding off-axis dispersion. The face plates are die cast in aluminium for maximum mechanical stability. Scan-Speak’s unique AirCirc Magnet System has six separate neodymium slugs. This, in combination with the chamber, results in the elimination of reflections and resonances that compromise traditional motors. Rubber painted aluminium diecast faceplate, Silver. |
| Description | 26mm Ring Radiator 4 ohm, Neo, AirCirc, Clover |
| Type | Tweeter |
| Size | 1' |
| Price Type | each |
| Power | 90Wrms |
| Coil | 26mmØ |
| Width | 104mm |
| Impedance | 4Ω (Re 3.0Ω) |
| Depth | 23.3mm |
| Mag. | 0.3kg |
| Sens. | 91.5dB |
| Re | 3.0Ω |
| Qms | 3.79 |
| Qes | 0.62 |
| Qts | 0.54 |
| Vas | 0.02L |
| Sd | 5.6cm² |
| Cms | 0.29mm/N |
| Fs | 500Hz |
| Mms | 0.35g |
| Zn | 4Ω |
| Le | 0.03mH |
| Rms | 0.29kg/s |
| Manufacturer | Scan-speak |
| QTY | 1 |
| Inch | 1 |
| O/D | 105mm |
| Impedance (Ohm) | 4 ohm |
| Power (RMS) | 51-100 Watt |
| Prms | 90W |
| Series | Illuminator |
| Brand. | Scan-speak |
| SKU No | WES_R3004/662001_1 |
