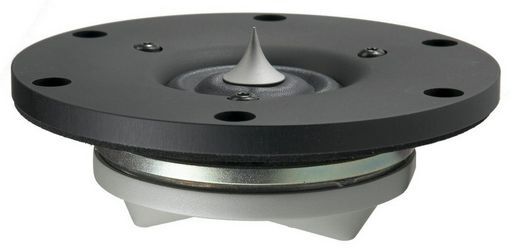

SCAN-SPEAK 1 RING RADIATOR TWEETER REVELATOR
NEODYMIUM NON-RESONANT - BLACK / SILVER PHASE PLUG
SKU code: WES_R2904700005_1
This is a SCAN-SPEAK 1 RING RADIATOR TWEETER REVELATOR of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 1 RING RADIATOR TWEETER REVELATOR |
| Notes | NEODYMIUM NON-RESONANT - BLACK / SILVER PHASE PLUG The Revelator tweeter series consist of the revolutionary ring radiator design, which put an end to some of the design trade-offs in dome designs. The ring radiator still offers unrivalled performance. Additional enhancements have been made to reduce distortion and power compression, such as large neodymium magnet systems for high sensitivity, and a careful design to optimize airflow in the chambers.1 Ring Dome DiaphragmPatented Symmetrical Drive (SD-2) motorNon Resonant Alu Rear ChamberPatented Phase Plug DesignLarge Ring Neo Magnet f. High OutputBlack Anodized Machined Alu Face Plate |
| Description | 26mm Ring Radiator 4 ohm, Large Ring Neo, Black Faceplate |
| Impedance | 4Ω (Re 3.7Ω) |
| Fs | 520Hz |
| Power | 160Wrms |
| Sens. | 94.5dB |
| Qes | 0.38 |
| Qms | 2.90 |
| Qts | 0.33 |
| Vas | 0.01L |
| Cms | 0.31mm/N |
| Coil | 26mmØ |
| Depth | 28mm |
| Impedance (Ohm) | 4 ohm |
| Inch | 1 |
| Le | 0.01mH |
| Mag. | 0.4kg |
| Mms | 0.3g |
| Power (RMS) | 151-200 Watt |
| Re | 3.7Ω |
| Rms | 0.34kg/s |
| Sd | 5.6cm² |
| Series | Revelator |
| Size | 1' |
| Type | Tweeter |
| Width | 104mm |
| Zn | 4Ω |
| Manufacturer | Scan-speak |
| Price Type | each |
| SKU No | WES_R2904/700005_1 |
