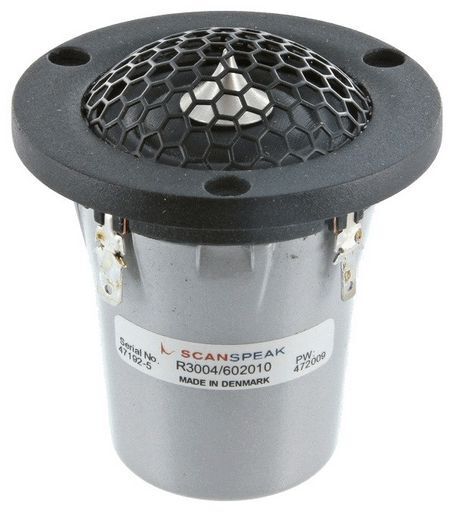

SCAN-SPEAK 1 RING RADIATOR TWEETER ILLUMINATOR
62MM FACIA 1” DOME NEODYMIUM PHASE-PLUG DEEP CHAMBER
SKU code: WES_R3004602010_1
This is a SCAN-SPEAK 1 RING RADIATOR TWEETER ILLUMINATOR of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 1 RING RADIATOR TWEETER ILLUMINATOR |
| Notes | 62MM FACIA 1” DOME NEODYMIUM PHASE-PLUG DEEP CHAMBER The compact size is one of the key elements of these Illuminator tweeters, which provides a high degree of flexibility within design options. The small size is employed without compromising sound quality where these compact tweeters are fully comparable to the renowned full size Illuminator and Revelator tweeters, no matter if the music is played at high or low listening levels.1 Ring Dome DiaphragmPatented Symmetrical Drive (SD-2) motorNon Resonant Alu Rear ChamberPatented Phase Plug DesignSound Transparant Protective GrillDie Cast Housing & Face Plate |
| Description | 26mm Ring Radiator 4 ohm, Neo, Large Chamber, Grill |
| Impedance | 4Ω (Re 3.0Ω) |
| Power | 50Wrms |
| Sens. | 87.4dB |
| Fs | 420Hz |
| Cms | 0.41mm/N |
| Coil | 26mmØ |
| Depth | 55.4mm |
| Impedance (Ohm) | 4 ohm |
| Inch | 1 |
| Le | 0.02mH |
| Mag. | 0.2kg |
| Manufacturer | Scan-speak |
| Mms | 0.35g |
| O/D | 62mm |
| Page | 1 |
| Power (RMS) | 0-50 Watt |
| Price Type | each |
| Qes | 1.03 |
| Qms | 2.57 |
| Qts | 0.74 |
| QTY | 1 |
| Re | 3.0Ω |
| Rms | 0.36kg/s |
| Sd | 5.6cm² |
| Size | 1' |
| Type | Tweeter |
| Vas | 0.02L |
| Width | 61.9mm |
| Zn | 4Ω |
| Series | Illuminator |
| Brand. | ScanSpeak |
| SKU No | WES_R3004/602010_1 |
