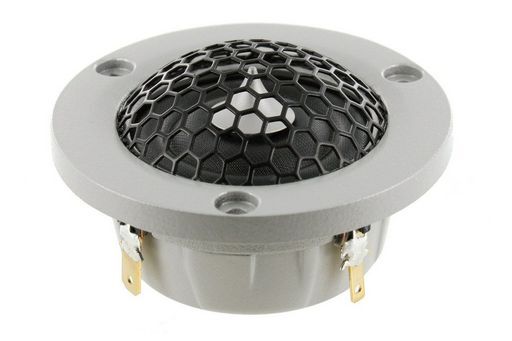

SCAN-SPEAK 1” RING RADIATOR TWEETER AUTOMOTIVE
62MM FACIA 1” DOME NEODYMIUM PHASE-PLUG UPGRADED
SKU code: WES_R3004602006_3
This is a SCAN-SPEAK 1” RING RADIATOR TWEETER AUTOMOTIVE of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
TECHNICAL SHEET | |
---|---|
Title | SCAN-SPEAK 1” RING RADIATOR TWEETER AUTOMOTIVE |
Notes | 62MM FACIA 1” DOME NEODYMIUM PHASE-PLUG UPGRADED 26mm Ring Radiator 4 ohm, Neo, Small Chamber, Grille. Scan-Speak SILVER SERIES are specially selected units from Scan-Speak’s well-known home audio speakers. Which have been optimized for automotive use. Suitable for home or automotive use.Scan-Speak1 Ring Dome DiaphragmSymmetrical Drive (SD-2) motorNon Resonant aluminium Rear ChamberPatented Phase Plug DesignSound Transparent Protective GrillDie Cast Housing & Face Plate |
Description | 26mm Ring Radiator 4 ohm, Neo, Small Chamber, Grill |
Type | Tweeter |
Size | 1' |
Power | 50Wrms |
Coil | 26mmØ |
Width | 62mm |
Impedance | 4Ω (Re 3.8Ω) |
Depth | 22mm |
Mag. | 0.15kg |
Sens. | 87.5dB |
Re | 3.8Ω |
Qms | 5.73 |
Qes | 1.43 |
Qts | 1.14 |
Vas | 0.01L |
Sd | 5.6cm² |
Cms | 0.19mm/N |
Fs | 625Hz |
Mms | 0.35g |
Zn | 4Ω |
Le | 0.02mH |
Rms | 0.24kg/s |
Series | Automotive |
Manufacturer | Scan-speak |
Impedance (Ohm) | 4 ohm |
Power (RMS) | 0-50 Watt |
Inch | 1 |
Price Type | each |
Brand. | ScanSpeak |
SKU No | WES_R3004/602006_3 |
