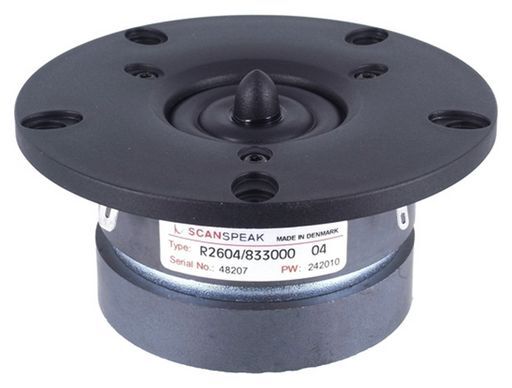

SCAN-SPEAK 1 RING RADIATOR DISCOVERY
SCAN-SPEAK 1 RING RADIATOR DISCOVERY
SKU code: WES_R2604833000_1
This is a SCAN-SPEAK 1 RING RADIATOR DISCOVERY of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 1 RING RADIATOR DISCOVERY |
| Notes | Dual concentric silk fabric diaphragm with wave guide centre plug Double chamber with damping for a low resonance rear cavity 550Hz Distortion reducing shorting ring and copper clad aluminium wire Phase plug also enables an extended upper frequency response 40KHz This is the Danish version of the popular and innovative Vifa unit. Made in Denmark, these units have also been improved upon. 5 Bolt poly-facia. |
| Description | 26mm Ring Radiator 4 ohm, Double Ferrite Magnet, Chamber |
| Type | Tweeter |
| Size | 1' |
| Price Type | each |
| Power | 100Wrms |
| Coil | 26mmØ |
| Width | 104mm |
| Impedance | 4Ω (Re 2.9Ω) |
| Depth | 55.1mm |
| Mag. | 0.8kg |
| Sens. | 92dB |
| Re | 2.9Ω |
| Qms | 2.18 |
| Qes | 0.46 |
| Qts | 0.38 |
| Vas | 0.02L |
| Sd | 5.4cm² |
| Cms | 0.44mm/N |
| Fs | 440Hz |
| Mms | 0.3g |
| Zn | 4Ω |
| Le | 0.02mH |
| Rms | 0.38kg/s |
| Manufacturer | Scan-speak |
| QTY | 1 |
| Page | 1 |
| Inch | 1 |
| Prms | 100W |
| Impedance (Ohm) | 4 ohm |
| Power (RMS) | 51-100 Watt |
| Series | Discovery |
| Brand. | Scan-speak |
| Vifa | XT25BG60-04 |
| SKU No | WES_R2604/833000_1 |
