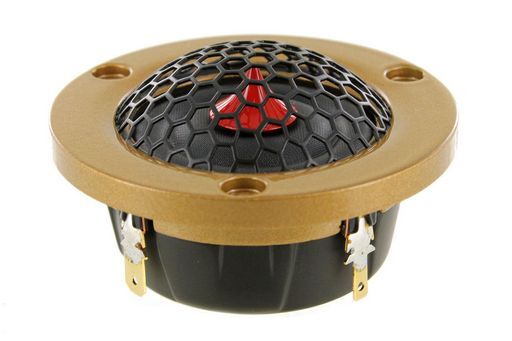

SCAN-SPEAK 1” RING RADIATOR AUTOMOTIVE
AUTOMOTIVE SERIES
SKU code: WES_R3004602005_2
This is a SCAN-SPEAK 1” RING RADIATOR AUTOMOTIVE of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 1” RING RADIATOR AUTOMOTIVE |
| Notes | AUTOMOTIVE SERIES 26mm Ring Radiator, 4ohm, Neo, Small Chamber, Grill. Scan-Speak GOLD SERIES are specially selected units from Scan-Speak’s well-known home audio speakers. Which have been optimized for automotive use. This series enables audiophiles to experience in their vehicle the - TRUE TO LIVE - that they enjoy from their high-end home audio system.Scan-Speak1 Ring Dome DiaphragmUpgraded SD-2 motor increased sensitivityNon Resonant aluminium Rear ChamberPatented Phase Plug DesignSound Transparent Protective GrilleDie Cast Housing & Face Plate |
| Description | 26mm Ring Radiator, 4 ohm, Neo, Small Chamber, Grill |
| Impedance | 4Ω (Re 3.8Ω) |
| Fs | 630Hz |
| Power | 50Wrms |
| Sens. | 90.0dB |
| Qes | 1.15 |
| Qms | 3.42 |
| Qts | 0.86 |
| Vas | 0.01L |
| Cms | 0.11mm/N |
| Coil | 26mmØ |
| Depth | 22mm |
| Impedance (Ohm) | 4 ohm |
| Inch | 1 |
| Le | 0.02mH |
| Mag. | 0.15kg |
| Manufacturer | Scan-speak |
| Mms | 0.59g |
| Power (RMS) | 0-50 Watt |
| Re | 3.8Ω |
| Rms | 0.68kg/s |
| Sd | 5.6cm² |
| Series | Automotive |
| Size | 1' |
| Type | Tweeter |
| Width | 62mm |
| Zn | 4Ω |
| Price Type | each |
| Brand. | ScanSpeak |
| SKU No | WES_R3004/602005_2 |
