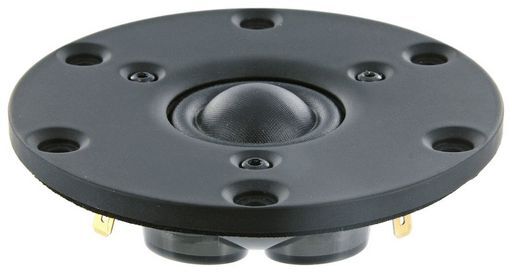

SCAN-SPEAK 1 DOME TWEETER ILLUMINATOR
EXTENDED DISPERSION CHARACTERISTIC OF A SMALLER DOME
SKU code: WES_D3004660000_1
This is a SCAN-SPEAK 1 DOME TWEETER ILLUMINATOR of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 1 DOME TWEETER ILLUMINATOR |
| Notes | EXTENDED DISPERSION CHARACTERISTIC OF A SMALLER DOME Unique AirCirc Magnet System, optimises air flow within the chamber rearranges the traditional magnet structure from a single magnet to an open magnetic circuit comprised of six separate neodymium slugs. This, in combination with the chamber, results in the elimination of the reflections and resonances that compromise traditional motors. D3004 gives engineers improved control over critical midrange performance,Superb vocal rendition and excellent imaging at all listening locations. |
| Description | 26mm Dome Tweeter 4 ohm, Neo, AirCirc |
| Type | Tweeter |
| Size | 1' |
| Price Type | each |
| Power | 90Wrms |
| Coil | 26mmØ |
| Width | 104mm |
| Impedance | 4Ω (Re 3.5Ω) |
| Depth | 28mm |
| Mag. | 0.3kg |
| Sens. | 91.6dB |
| Re | 3.5Ω |
| Qms | 3 |
| Qes | 0.59 |
| Qts | 0.49 |
| Vas | 0.02L |
| Sd | 7.0cm² |
| Cms | 0.33 mm/N |
| Fs | 500Hz |
| Mms | 0.35g |
| Zn | 4Ω |
| Le | 0.03mH |
| Rms | 0.3kg/s |
| Manufacturer | Scan-speak |
| QTY | 1 |
| Page | 1 |
| Inch | 1 |
| Impedance (Ohm) | 4 ohm |
| Power (RMS) | 51-100 Watt |
| Prms | 90W |
| Series | Illuminator |
| Brand. | Scan-speak |
| SKU No | WES_D3004/660000_1 |
