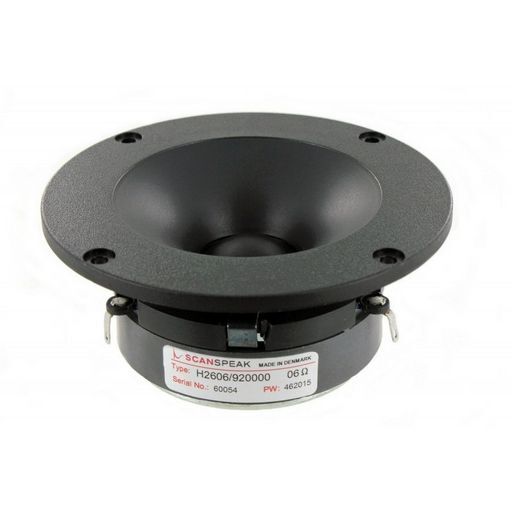

SCAN-SPEAK 1 DOME TWEETER HORN DISCOVERY
HORN LOADED VERSION
SKU code: WES_H2606920000_1
This is a SCAN-SPEAK 1 DOME TWEETER HORN DISCOVERY of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 1 DOME TWEETER HORN DISCOVERY |
| Notes | HORN LOADED VERSION The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements - plus a wealth of technical features and finesses - it gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point.Horn Loaded High Sensitivity TweeterLow Damping Ferrofluid CoolingCoated Textile DiaphragmDampened Cavity in Pole PieceTextile domeFormerly known as the Vifa H26TG05-06 |
| Description | 26mm Horn Dome Tweeter 6 ohm, Ferrite Magnet |
| Impedance | 6Ω (Re 5.0Ω) |
| Power | 100Wrms |
| Sens. | 95.2dB |
| Fs | 1030Hz |
| Qes | 1.2 |
| Qms | 2.1 |
| Qts | 0.7 |
| Cms | - |
| Coil | 25mmØ |
| Depth | 45mm |
| Impedance (Ohm) | 6 ohm |
| Inch | 1 |
| Le | 0.05mH |
| Mag. | 0.6kg |
| Mms | 0.4g |
| Power (RMS) | 51-100 Watt |
| Re | 5.0Ω |
| Rms | 1.3kg/s |
| Sd | 5.7cm² |
| Size | 1' |
| Type | Tweeter |
| Vas | - |
| Width | 104mm |
| Zn | 6Ω |
| Manufacturer | Scan-speak |
| Page | 1 |
| Series | Discovery |
| Price Type | each |
| SKU No | WES_H2606/920000_1 |
