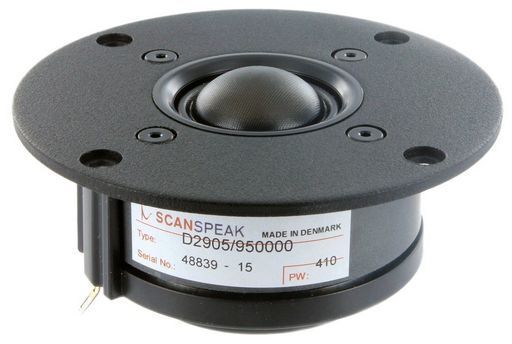

SCAN-SPEAK 1 DOME TWEETER CLASSIC
UPGRADE D2905/930000 WITH NON-RESONANT REAR CHAMBER
SKU code: WES_D2905950000_1
This is a SCAN-SPEAK 1 DOME TWEETER CLASSIC of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 1 DOME TWEETER CLASSIC |
| Notes | UPGRADE D2905/930000 WITH NON-RESONANT REAR CHAMBER Textile diaphragm 1” with a smooth, detailed and very transparent sound and low levels of distortion. To achieve high resolution and better detail reproduction, a special coating material is used. This complicated coating process in done by hand several times to obtain a unique combination of dynamic linearity and low resonances. A light ferro-fluid is used for minimal micro-dynamic unlinearities.1 Textile Dome DiaphragmLow Resonance Rear ChamberFerro FluidBlack Aluminium Face Plate |
| Description | 28mm Dome Tweeter 6 ohm, Ferrite Magnet, Ferro Fluid |
| Type | Tweeter |
| Size | 1' |
| Price Type | each |
| Power | 150Wrms |
| Coil | 28mmØ |
| Width | 104.3mm |
| Impedance | 6Ω (Re 5.5Ω) |
| Depth | 40.7mm |
| Mag. | 0.7kg |
| Sens. | 90dB |
| Re | 4.7Ω |
| Qms | 1.04 |
| Qes | 0.6 |
| Qts | 0.38 |
| Vas | 0.02L |
| Sd | 8.5cm² |
| Cms | 0.19mm/N |
| Md | 0.45g |
| Fs | 550Hz |
| Bi | 3.5Tm |
| Mms | 0.45g |
| Zn | 6Ω |
| Le | 0.07mH |
| Rms | 1.5kg/s |
| Manufacturer | Scan-speak |
| Impedance (Ohm) | 6 ohm |
| QTY | 1 |
| Page | 1 |
| Inch | 1 |
| Power (RMS) | 101-150 Watt |
| Prms | 150W |
| Freq. | 2KHz - 30KHz |
| Series | Classic |
| Brand. | Scan-speak |
| SKU No | WES_D2905/950000_1 |
