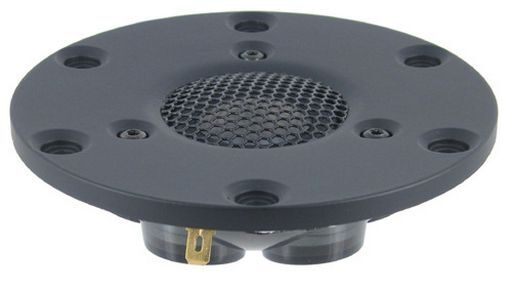

SCAN-SPEAK 1 DOME TWEETER BERYLLIUM
NEODYMIUM AIRCIRC MAGNET SYSTEM
SKU code: WES_D3004664000_1
This is a SCAN-SPEAK 1 DOME TWEETER BERYLLIUM of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 1 DOME TWEETER BERYLLIUM |
| Notes | NEODYMIUM AIRCIRC MAGNET SYSTEM This tweeter features a 99% pure Beryllium dome diaphragm. The large roll surround and Beryllium dome diaphragm provide a flat frequency response to above 40KHz with outstanding off-axis dispersion and a silky-smooth sound. ScanSpeak’s unique AirCirc Magnet System, named for the way it optimizes air flow within the chamber, rearranges the traditional magnet structure from a single magnet to an open magnetic circuit comprised of six separate neodymium slugs. This, in combination with the chamber, results in the elimination of the reflections and resonances that compromise the performance of traditional motors. The D3004-664000 gives engineers improved control over critical midrange performance, for superb vocal rendition and excellent imaging at all listening locations.Beryllium Diaphragm (99% Pure Be)Patented Symmetrical Drive (SD-2) motorBlack Rubber Painted Die Cast FaceplateAirCirc Motor Design with 6 Neodymium magnetsLarge Roll Surround f. Wide DispersionNon-Magnetic Sound Transparent Protective Grill |
| Description | 26mm Beryllium Dome Tweeter 4 ohm, Neo, AirCirc, Grill |
| Impedance | 4Ω (Re 3.6Ω) |
| Impedance (Ohm) | 4 ohm |
| Power | 90Wrms |
| Power (RMS) | 51-100 Watt |
| Sens. | 91.5dB |
| Fs | 500Hz |
| Qms | 3.79 |
| Qes | 0.62 |
| Qts | 0.54 |
| Vas | 0.02L |
| Cms | 0.29mm/N |
| Coil | 26mmØ |
| Depth | 22mm |
| Inch | 1 |
| Le | 0.03mH |
| Mag. | 0.3kg |
| Manufacturer | Scan-speak |
| Mms | 0.35g |
| QTY | 1 |
| Re | 3.6Ω |
| Rms | 0.29kg/s |
| Sd | 7.0cm² |
| Size | 1' |
| Type | Tweeter |
| Width | 104mm |
| Zn | 4Ω |
| Page | 1 |
| Price Type | each |
| Series | Illuminator |
| SKU No | WES_D3004/664000_1 |
